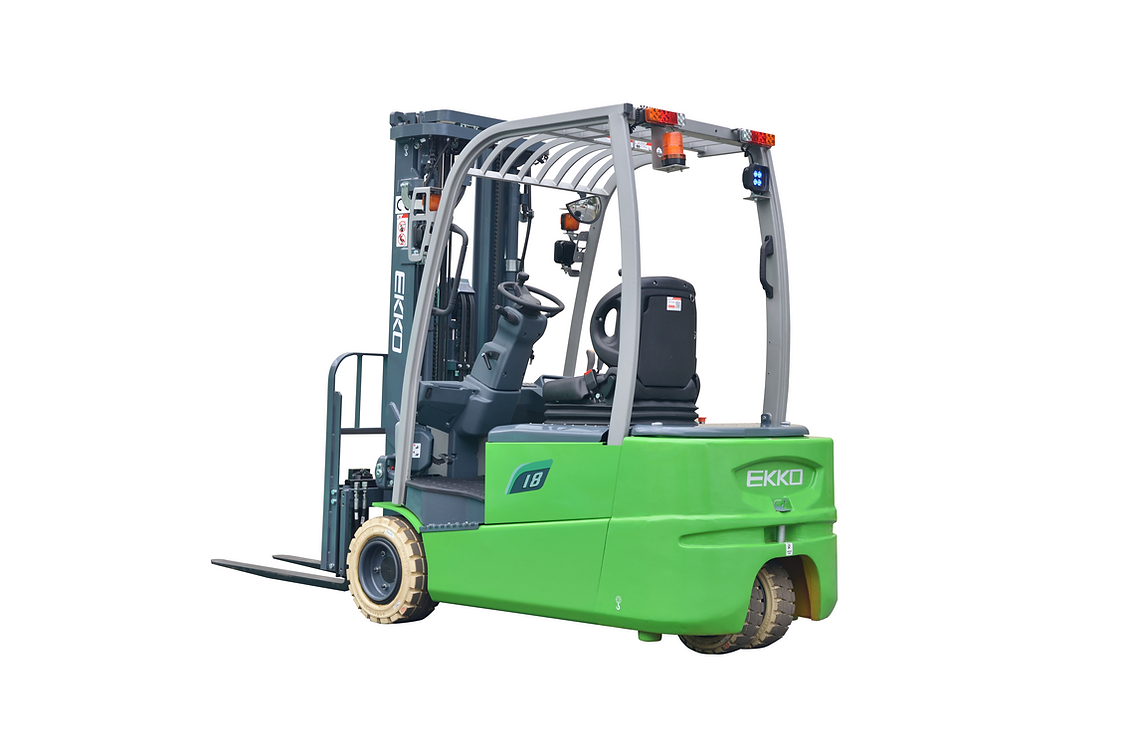

EKKO EK18AT-216Li 3 Wheel Lithium Forklift
The EKKO EK18AT-216Li 3 Wheel Lithium Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing. Dual motors provide extra power, stability and handling.
Product Description
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4000 lb
- Raised Height 212" (15.4ft)
- Cascade Side Shift
- Shimadzu 4-Way Valve
- Free Lift 54.6”
- Adjustable Forks
- Hydraulic Steering
- INMOTION controller
- Battery 48V/202Ah Lithium (included)
- Solid Pneumatic Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 48V/100A
- 3-Phase 480V Charger (optional 220V & 110V)
General
Model
EK18AT-LI
Power unit
Lithium
Operation Type
Rider
Loading capacity (LBS)
4000
Load center (Inch)
24
Wheelbase (Inch)
53.5
Serviceweightwithbattery LBS
7550
Wheels type
Solid Pneumatic
Tire size front
200/50-10
Tire size rear
140x55-9
Wheels
2×/2
Tread, front (Inch)
35.8
Tread, back (Inch)
7.1
Mast Tilt (°)
3/6
Lowered mast height (Inch)
83.1
Free lift height (Inch)
54.6
Lift height (Inch)
212
Height of overhead guard (cabin) (Inch)
77.6
Overall length (Inch)
116.9
Overall width (Inch)
41.5
Ground clearance under mast (Inch)
4.3
Min.Ground clearance (Inch)
3.7
Min.Turning radius (Inch)
61
Travel speed,laden/unladen (mph)
10/10
Lifting speed, with/without load (in/s)
13.8/20.5
Climbing ability, withload (%)
20
Service brake
Hydraulic
Drive motor, (kw)
4.75
Lift motor (kw)
10
Battery voltage/rated capacity (V/Ah)
48V/202 lithium
Type of drive control
AC
