EKKO EB14CS-145Li Lithium Straddle Stacker 3000 lb. Cap, 145" Height, Side Shift
The EKKO EB14CS-145Li Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Product Description

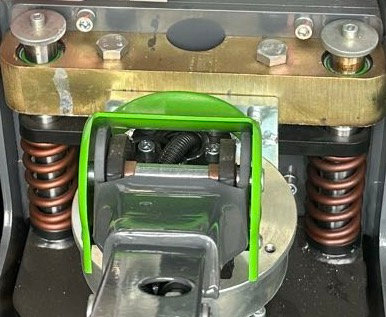

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance. It features a dual damping drive system design for stronger handling performance, efficiency, and comfort for the operator.
- Load Capacity 3000 lb
- Raised Height 145” (12.08 ft.)
- Side Shift
- Adjustable Forks 8.7-32.1“
- Adjustable Legs 35.4-51.2”
- Fork Length 45.3“
- Curtis Instrument Controller
- DC Drive Motor
- Battery 24V/50Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Dual Damping Drive System
- Steel Construction
General
Model
EB14CS-145LI
Load capacity (lbs)
3000
The max. lifting height (in)
145
Load center distance (in)
20
Fork length (in)
45.3
Single fork width (in)
4
Fork Adjustment Width (in)
8.7-32.1
Lowered fork height (in)
2.6
Adjustable legs (in)
35.4-51.2
Turning radius (in)
60.8
Overall length (in)
73.7
Max Overall width (in)
61
Extended mast height (in)
174.8
Lowered mast height (in)
95.5
Battery voltage (V/Ah)
24V/50Ah Lithium
Internal charger V/A
24V/20
Lifting Motor Kw
2.2 kw
Driving Motor
DC Drive Motor
Service Weight (lbs)
1800
