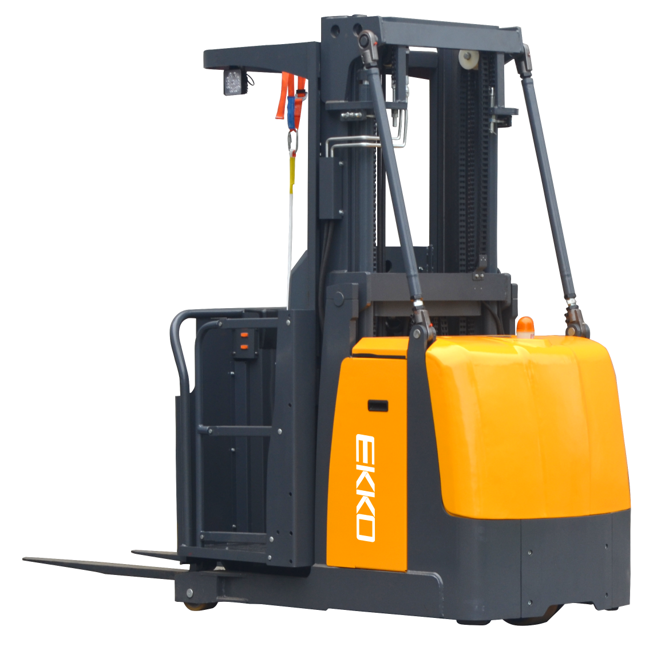

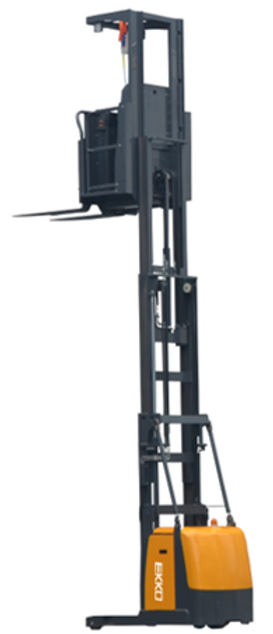

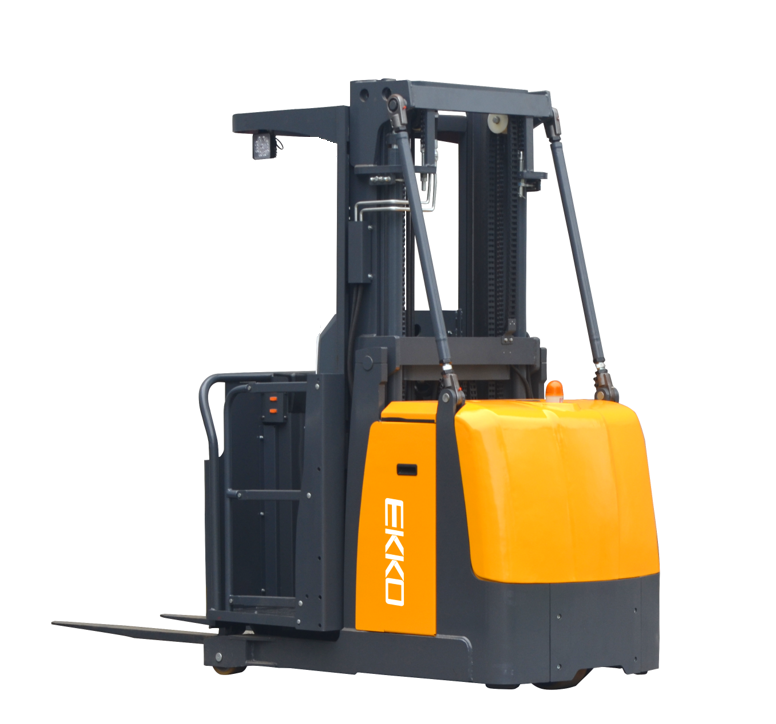

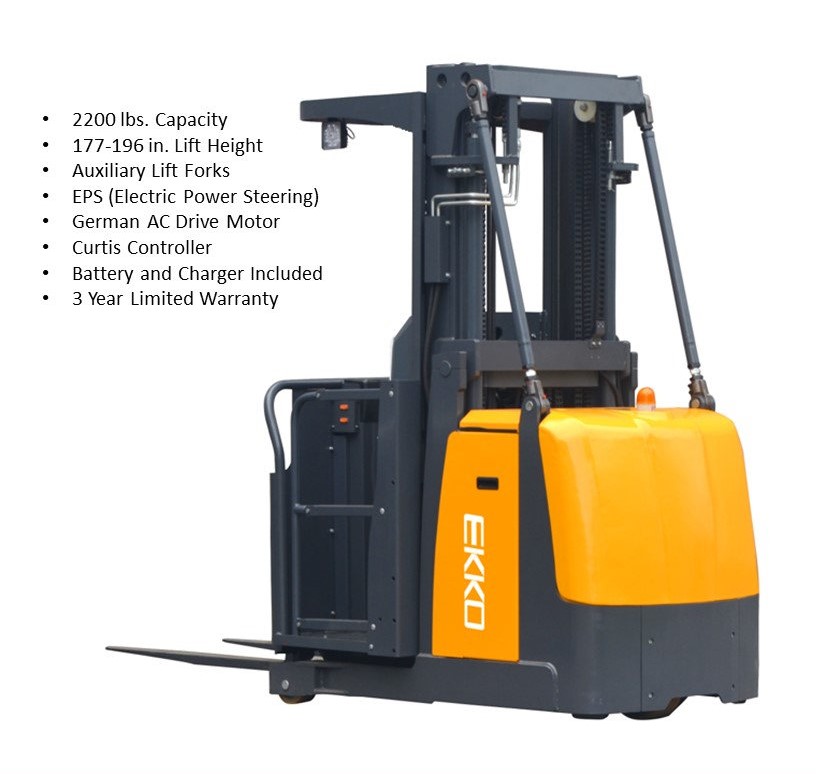

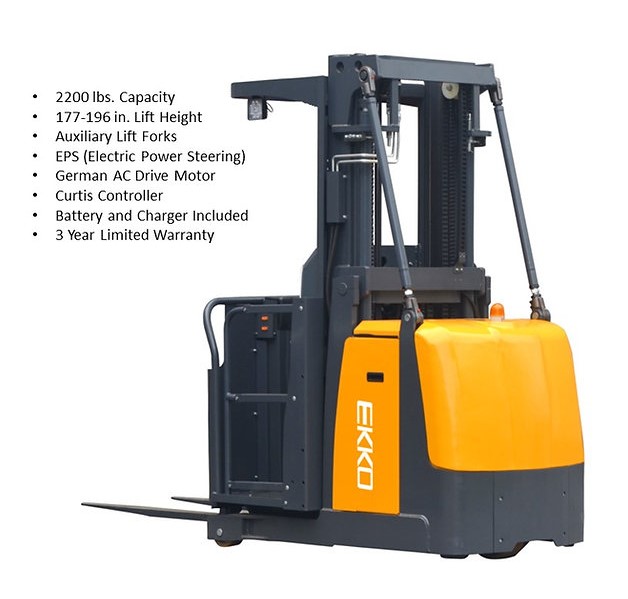

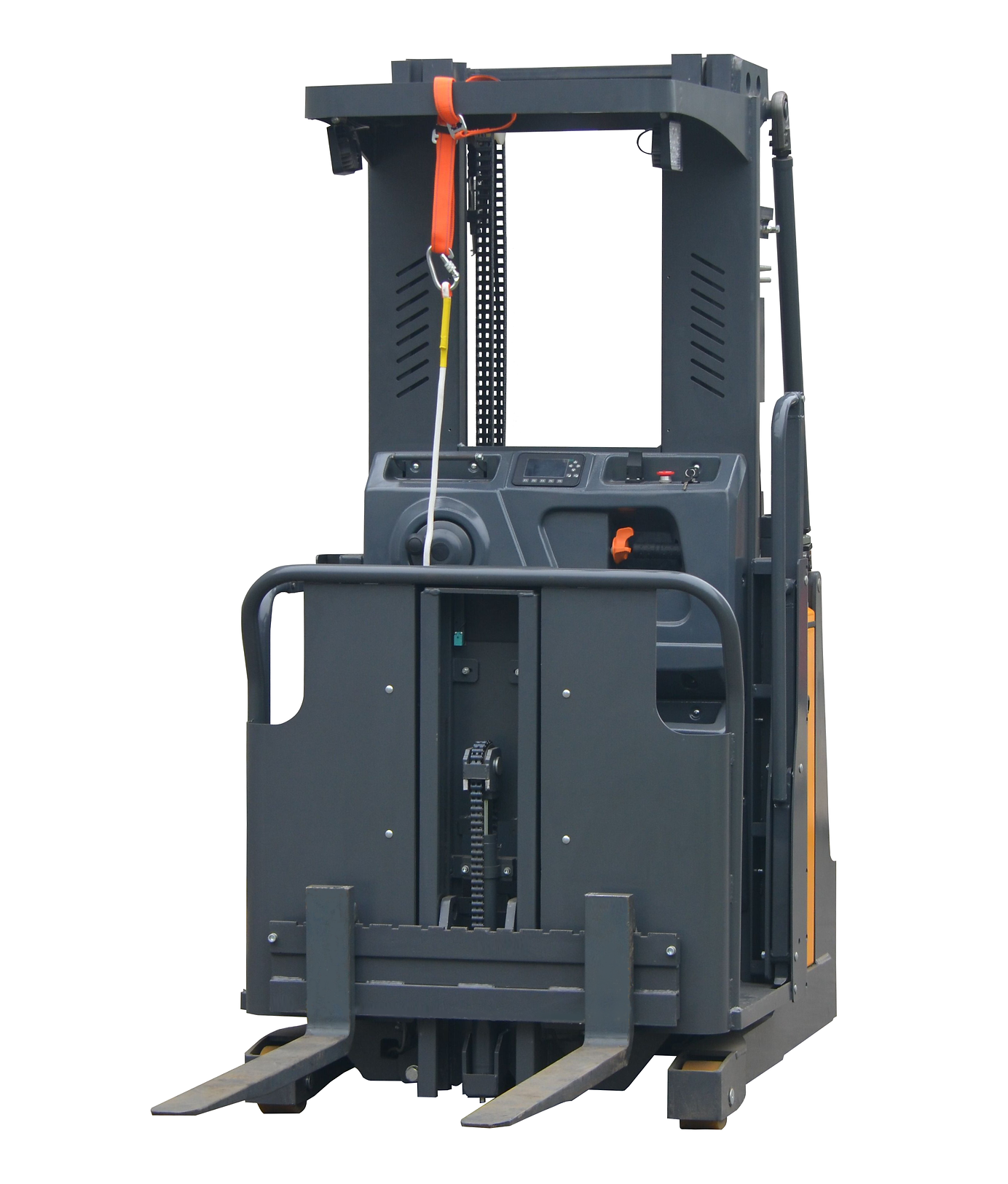

EOP68 Order Picker 2200 lb Cap., 177" Lift
The EKKO EOP68 Electic Mid-Level Order Picker is designed it's sole purpose to pick your ordersfrom your racking and storage facility rooms, manufacturing floors and warehousing.
Product Description
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 2200 lb
- Raised Height 177" (14.75 ft.)
- Adjustable Forks
- Auxiliary Fork
- Triple Mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- German AC Drive Motor
- Battery 24V/350Ah
- 24V/50A
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery Included
- 3 Years Limited Warranty
General
Model
EOP68
Power unit
Electric
Operation
Stand on
Rated loading capacity Q (LBS)
2200
Load Centre c (Inch)
19.68
Between fork backrest & front wheel x (Inch)
7.56
Wheelbase y (Inch)
53.46
Serviceweightwithbattery LBS
6270
Wheels type
PU
Driving wheel size Φ×w(Inch)
ϕ9.84×5
Bearing wheel size Φ×w(Inch)
ϕ5.9×3.23
Wheels, number front/rear (x = driven)
1，/2
Track width b11 (Inch)
37.8
Lowered mast height h1 (Inch)
93.11
Lifting Height h3 (Inch)
177.16
Extended mast height h4 (Inch)
266.65
Height of overhead guard(cabin) h6 (Inch)
89.48
Height of seat/stand-on platform h7 (Inch)
10.67
Additional lift height h9 (Inch)
30.71
total lift height h10 (Inch)
208.66
Platform lifting height h12 (Inch)
187.83
Lowered fork height h13 (Inch)
1.97
Picking height h15 Inch)
239.01
Overall length l1 (Inch)
111.41
Body Length l2 (Inch)
69.29
Overall Width b1/ b2 (Inch)
39.37/145.28
Fork Size s/e/l (Inch)
1.37/3.93/42.13
Width of fork fixing frame b3 (Inch)
35.83
outside fork width b5 (Inch)
34.33
Min.Ground clearance m2 (Inch)
1.97
Aisle width for pallets 39.37*47.24 crossways Ast (Inch)
122.24
Aisle width for pallets 31.5*47.24 lengthways Ast (Inch)
126.77
Turing Radius Wa (Inch)
61.81
Travel speed,laden/unladen (km/h)
8
Lifting speed, with/without load(cabin) (mm/s)
140/150
Lifting speed, with/without load(Fork) (mm/s)
130/140
Lowering speed, with/without load(cabin) (mm/s)
240/250
Lowering speed, with/without load(Fork) (mm/s)
130/95
Climbing ability, with/without load (%)
3/6
Brake Type
Electromagnetic brake
Drive Motor (kW)
3
Lift motor (kw)
6
Battey, DIN 43531/35/36 A,B,C,no
no
Battery voltage/rate capacity (V/Ah)
24/350
Battery Weight（±5%） (lbs)
600
Type of drive control
AC
Noise level (dB(A))
≤75
