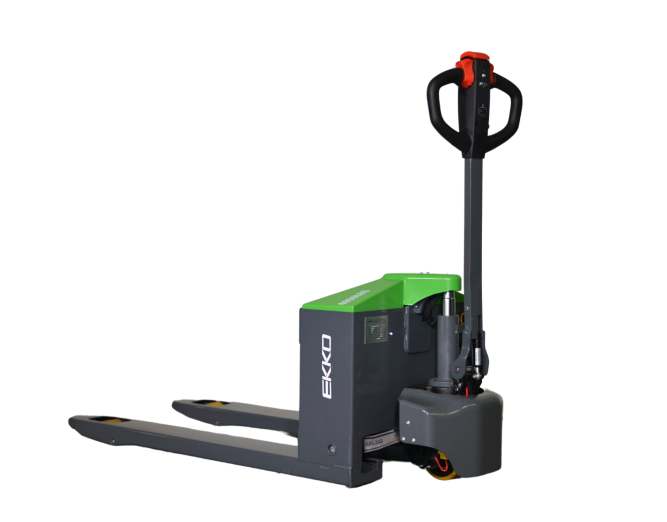

EKKO EP18JLIC Lithium Walkie Pallet Jack 4000 lb Capacity
The EKKO EP18JLIC Lithium Walkie Pallet Jacks are designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Product Description
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Lithium 24V Powered
- Load Capacity 4000 lb
- Fork Size 2.2x45.2
- Raised Height 7.48"
- Lowered Height 2.95"
- Pinwheel Capability
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery Included
- 3 Years Limited Warranty
General
Model
EP18JLIC
Drive type
Electric
Manner of operation
Walkie
Load Capacity Q (LBS)
4000
Load Centre c (Inch)
23.6
Axle centre to fork face x (Inch)
37
Wheel Base y (Inch)
50.3
Tire material
Polyurethane
Driving wheel size Φ×w(Inch)
ϕ8.27×2.95
Bearing wheel size Φ×w(Inch)
ϕ2.91×3.66
Qty of wheel，Front/Rear（x=driving wheel）
1x/2
Tread b11 (Inch)
21.06
Lifting Height h3 (Inch)
7.48
The height of handle in the operation position h14 (Inch)
48.2
Lowered fork height h13 (Inch)
2.95
Overall length l1 (Inch)
64
Body Length l2 (Inch)
16.53
Overall Width b1/ b2 (Inch)
27
Fork Size s/e/l (Inch)
2.24/6.3/45.28
Fork Width b5 (Inch)
27
Min.Ground clearance m2 (Inch)
1.06
Aisle width for pallets 39.37*47.24 crossways Ast (Inch)
88.9
Aisle width for pallets 31.5*47.24 lengthways Ast (Inch)
83.9
Turing Radius Wa (Inch)
57.5
Driving Speed，load/unload (km/h)
2.6/2.8
Maximum gradeability load/unload (in/s)
0.24/0.39
Brake Type
Electromagnetic brake
Drive Motor (kW)
0.75
Lift motor (kw)
0.8
Lithium LiFePO4 Battery voltage rate capacity (V/Ah)
24/40
Battery Weight（±5%） LBS
21.1
Type of drive control
DC
Noise level (dB(A))
≤70
Service Weight（with battery） LBS
346
