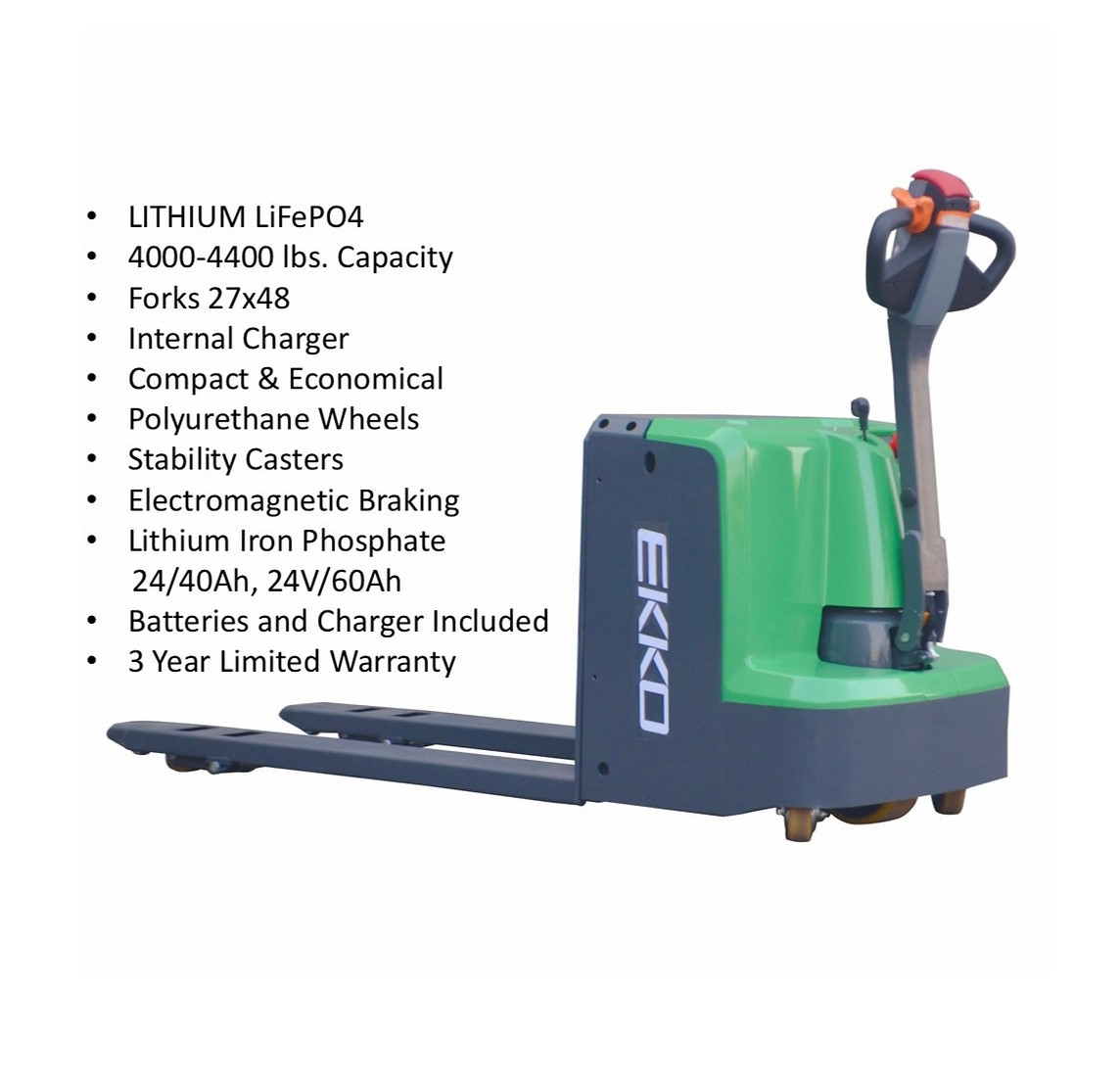

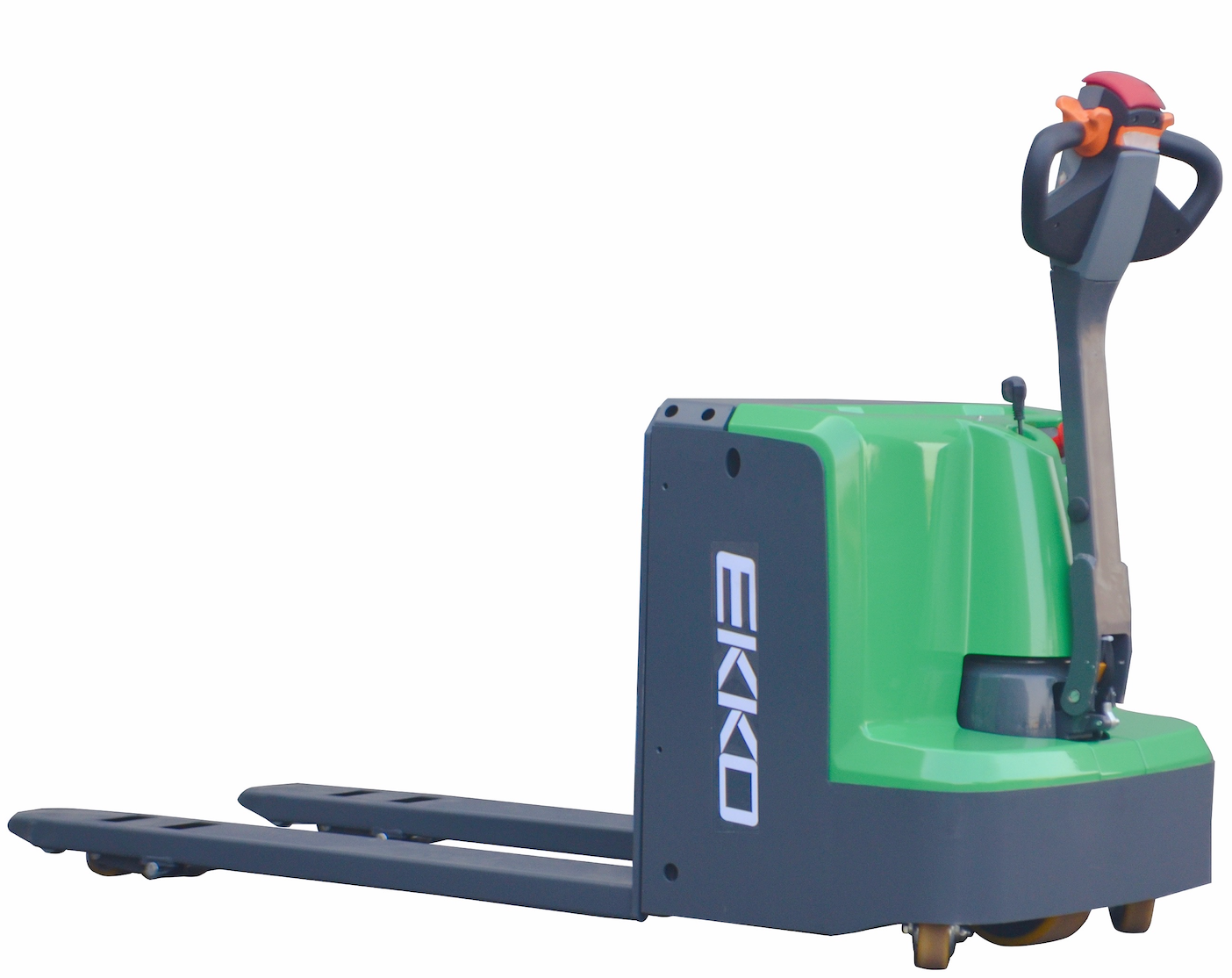

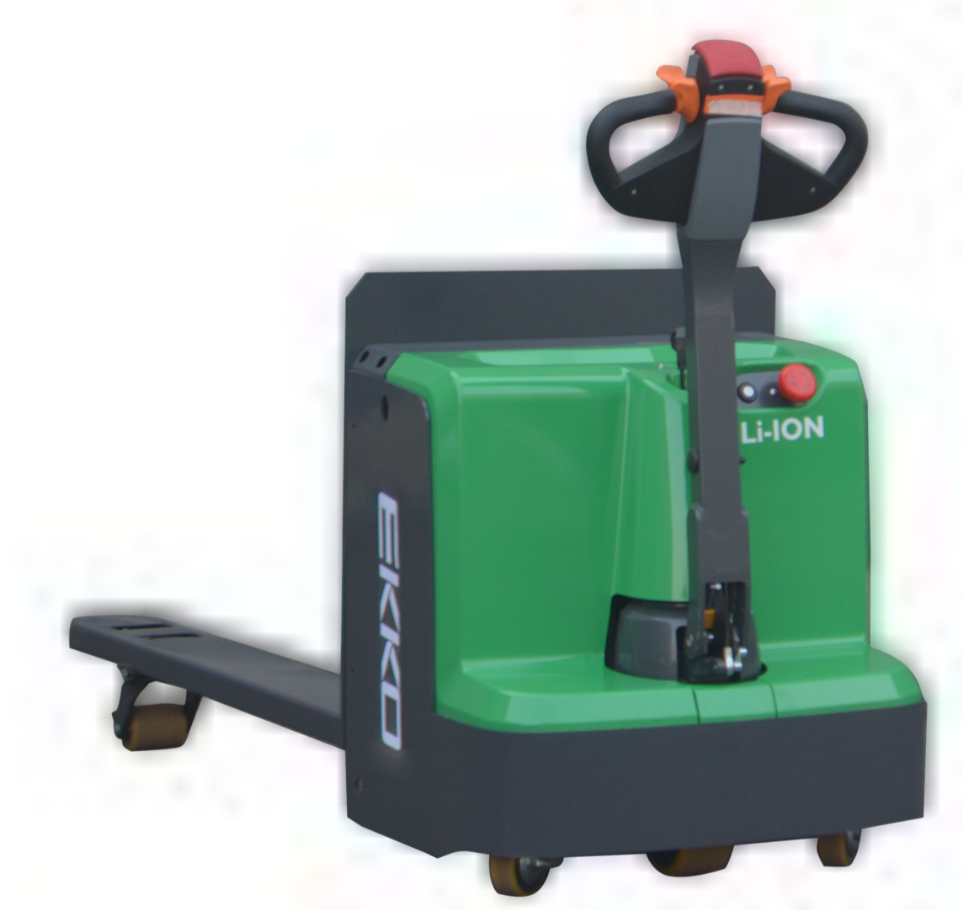

EKKO EP20Li Lithium Iron Phosphate Pallet Jack 4400 lb Capacity
The EKKO EP20LI Lithium Iron Phosphate Electric Walkie Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Product Description
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4400 lb
- Fork Size 27x48
- Raised Height 7.7"
- Lowered Height 3.3"
- Polyurethane Wheels
- Steel Entry Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Built-In Charger
- Lithium Iron Battery LiFePO4 24V/60Ah
- Optional Backrest
- 3 Years Limited Warranty

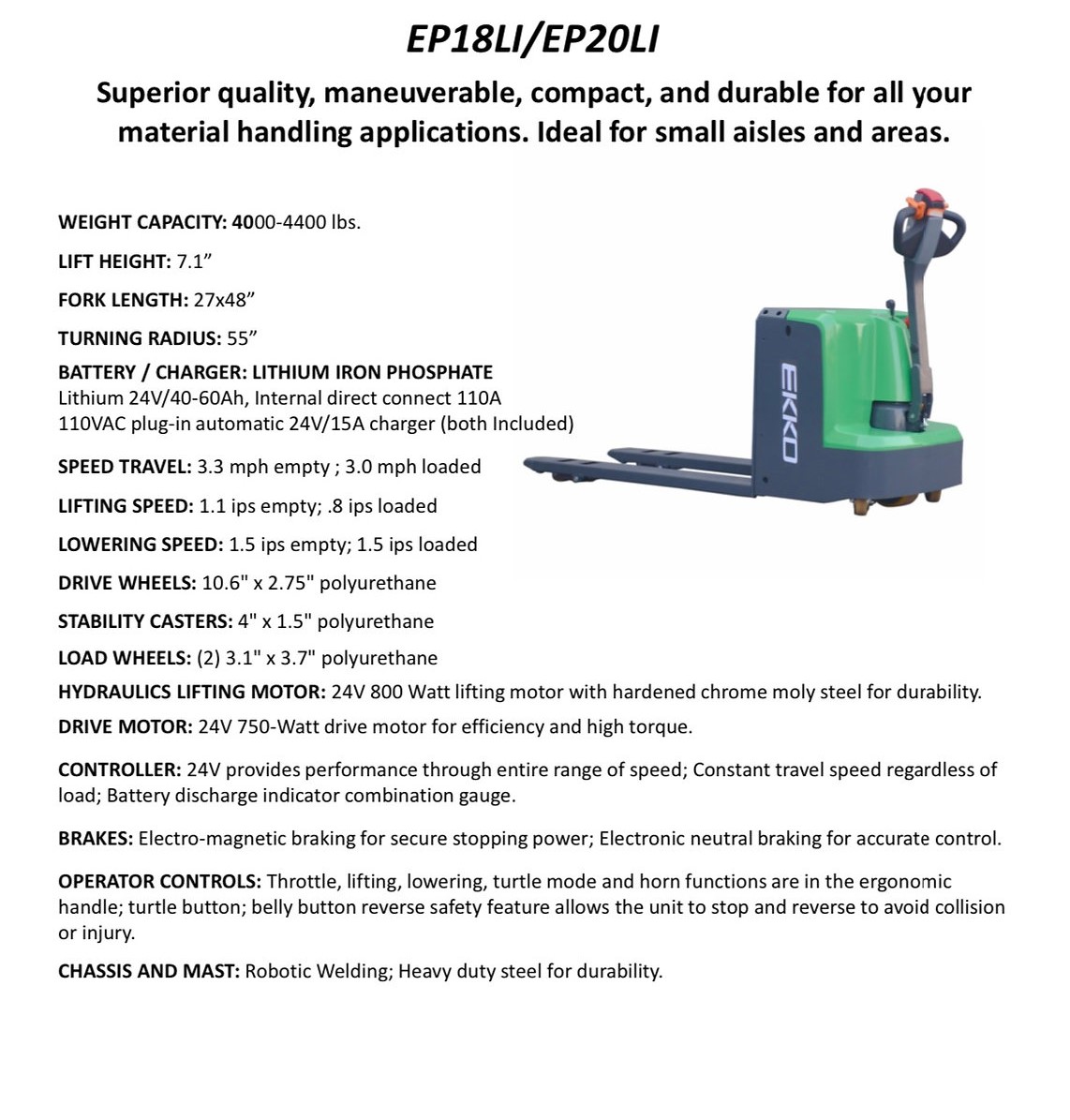

General
Model
EP20LI
Model
EP20LI
Lift
Electric
Drive
Electric
Load capacity (lb)
4400
Load center (in)
24
Wheel base (in)
53
Lowered fork height (in)
3.3
Lifting height (in)
7.7

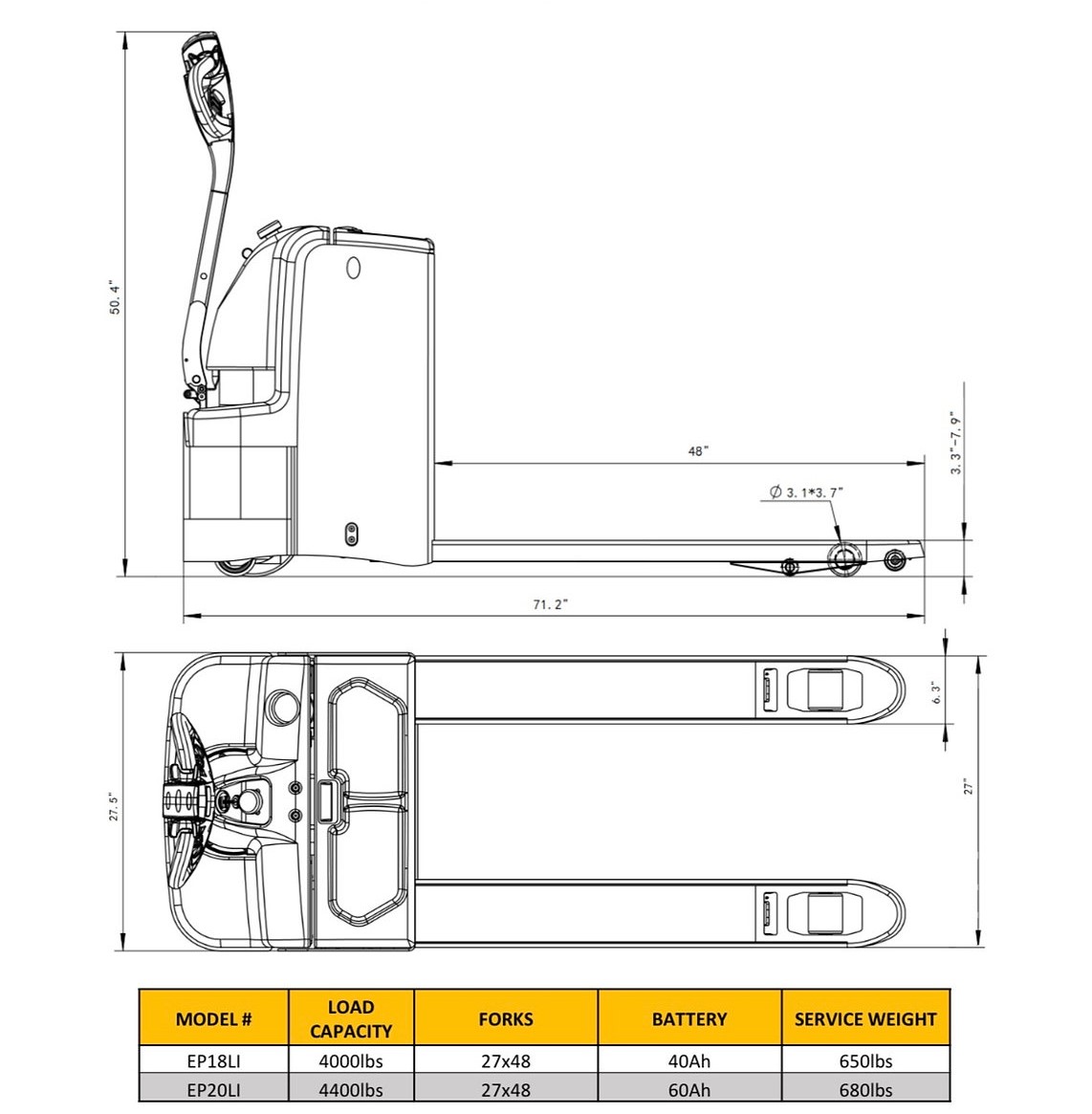

Overall length (in)
67.2
Overall width (in)
27.5
Fork size s/e/l (in)
2/6/48
Outside distance of fork (in)
27
Turning radius (in)
55
Lifting speed, laden/unladen (in/s)
0.8/1.1
Lowering speed, laden/unladen (in/s)
1.5/1.5
Max gradient performance laden/unladen (%)
8/15
Brake Type
electromagnetic
Drive motor (W)
750W
Lift motor (W)
80W
Lithium LiFePO4Battery voltage/rated capacity (V/Ah)
24V/60Ah
DC Drive Motor
DC Motor speed control
Noise level at operator sear (dB(A))
68
Service weight（with battery） (lb)
680
