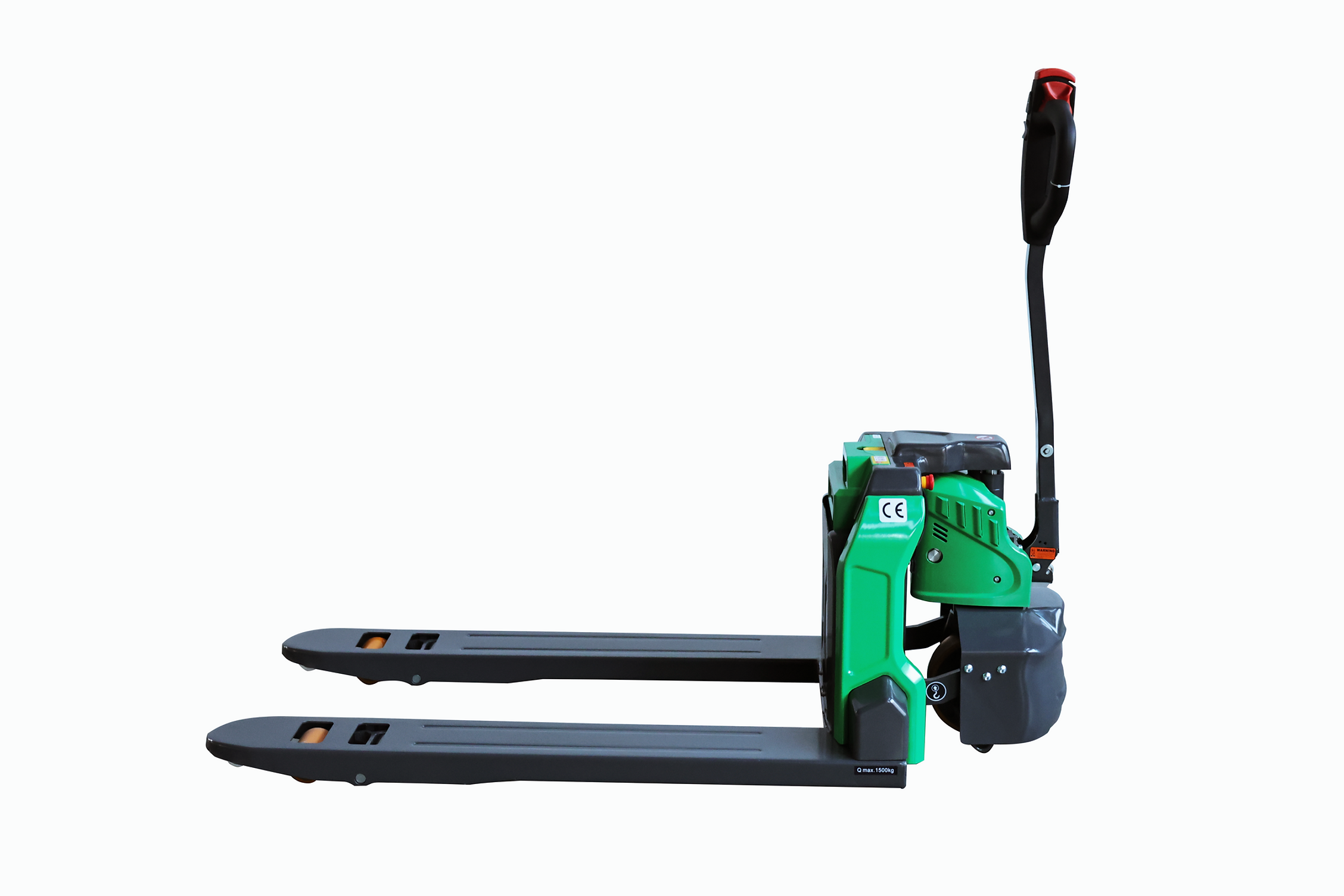

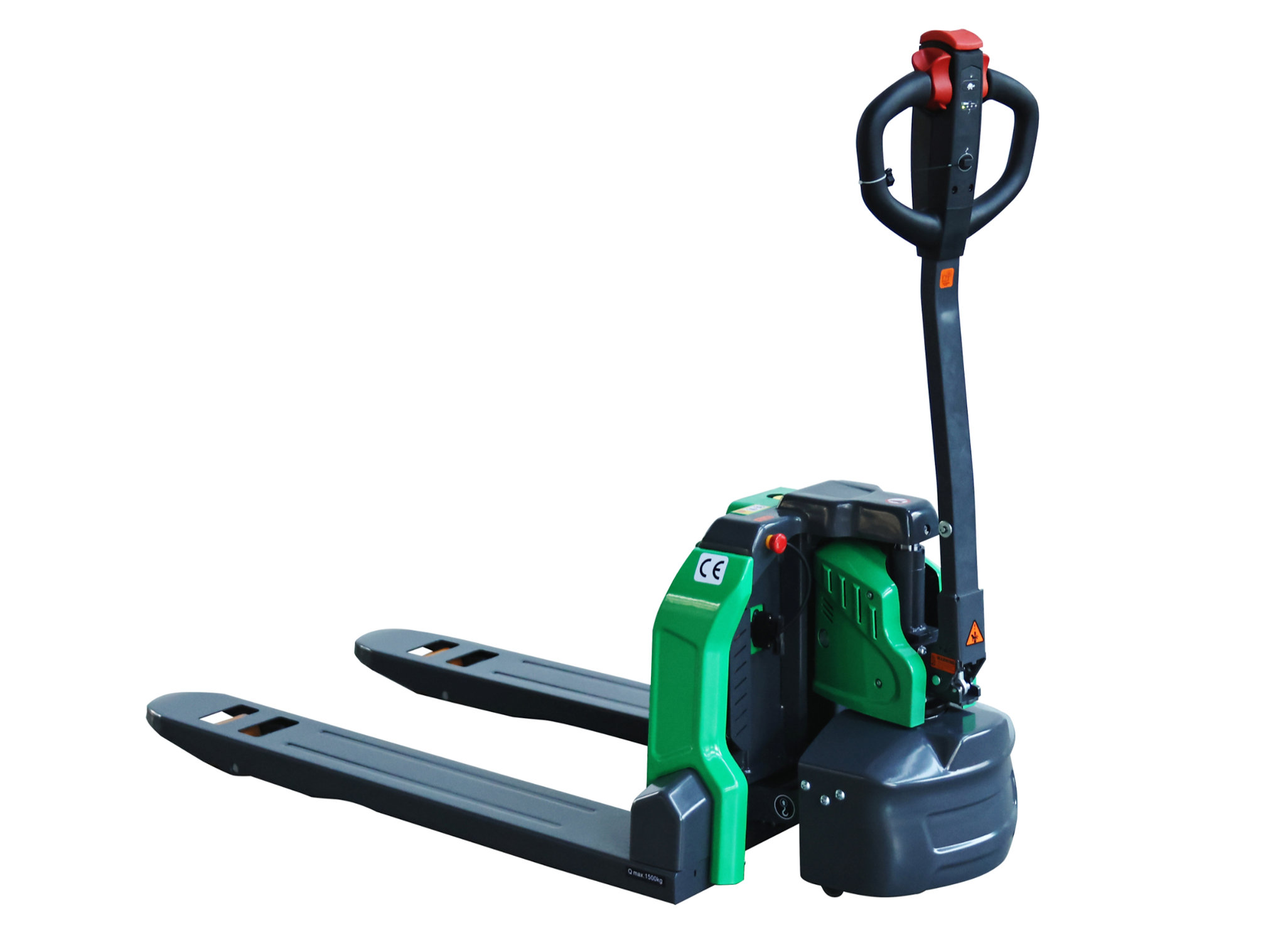

EKKO EPT20Li Full-Powered Lithium Pallet Jack 4400lbs. Capacity
The EKKO EPT20Li Full-PoweredLithium Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for long hauls, loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Product Description
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4400lbs.
- Fork Size 27x45
- Raised Height 7.68"
- Lowered Height 3.35"
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included

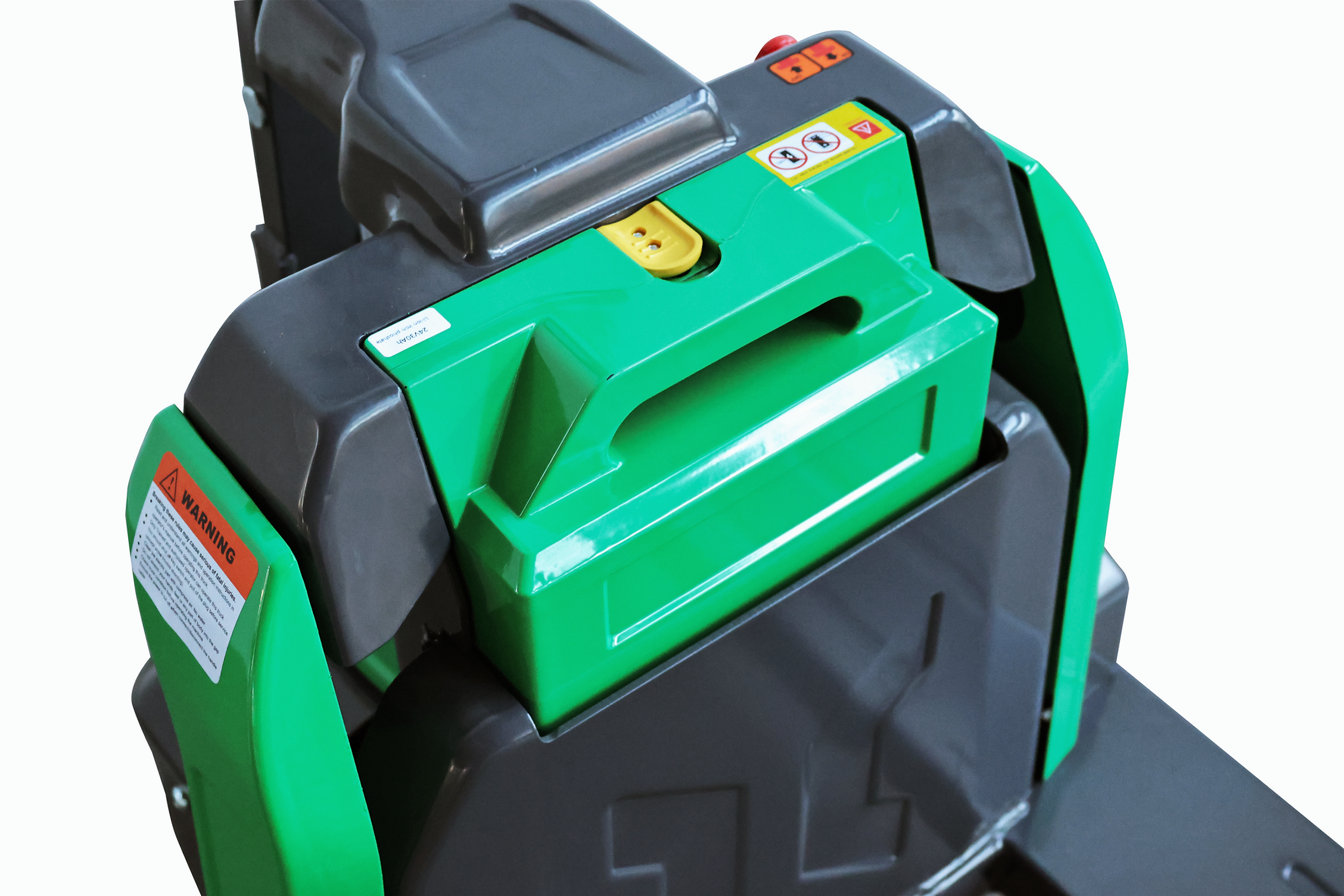

- Removable Battery 48V/20Ah Included
- 3 Years Limited Warranty
General
Model
EPT20Li
Power unit
Lithium Battery
Wheels type
PU
Travel speed,laden/unladen (mph)
2.49/2.8
Lifting speed, with/without load (in/s)
0.59/0.76
Lift motor (kw)
0.7
Type of drive control
DC
Overall length l1 (Inch)
64.17
Min.Ground clearance m2 (Inch)
0.98
Overall Width b1/ b2 (Inch)
31.81
Fork Size s/e/l (Inch)
2.24/6.3/45.28
Fork Width b5 (Inch)
26.97
Brake Type
Electromagnetic brake
Drive Motor (kW)
0.85
Battery voltage/rate capacity (V/Ah)
48/20
Battery Weight（±5%） (lbs)
13.9
Wheel Base y (Inch)
81.89
Turning radius Wa (Inch)
58.82
Lifting Height h3 (Inch)
7.68"
Lowered fork height h13 (Inch)
3.35
Aisle width for pallets 39.37*47.24 crossways Ast (Inch)
88.5
Aisle width for pallets 31.5*47.24 lengthways Ast (Inch)
85.2
Operation
Control
Rated loading capacity Q (LBS)
4400
Load center distance c (Inch)
24
Overall height h14 (Inch)
42.91
Lowering speed, with/without load (in/s)
6/10
Service weight with battery LBS
365
