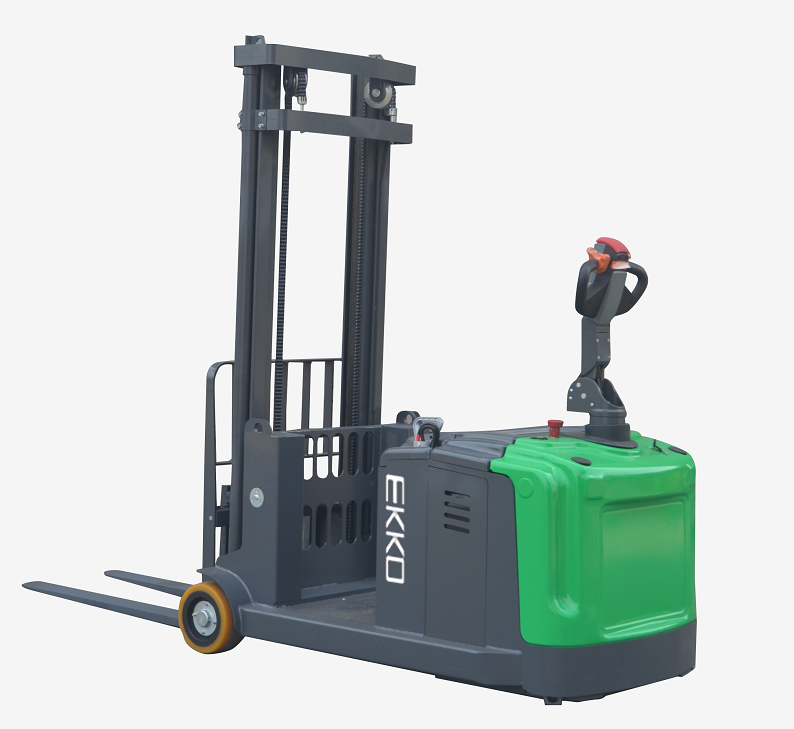

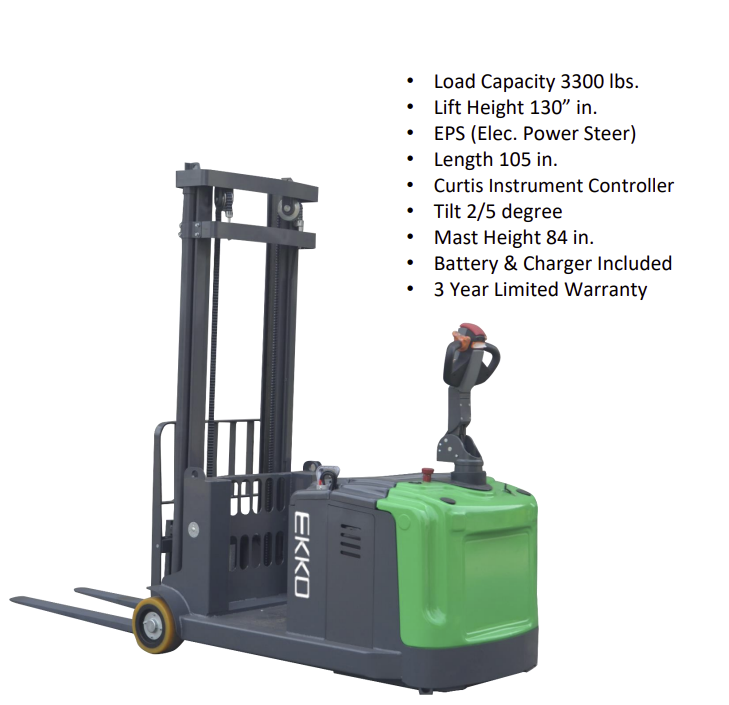

EKKO EK14-130Li Lithium Powered Counterbalanced Walkie Stacker
The EKKO EK14-130Li Lithium Powered Counterbalanced Walkie Stacker is designed with the combination of the versatility of forklift and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

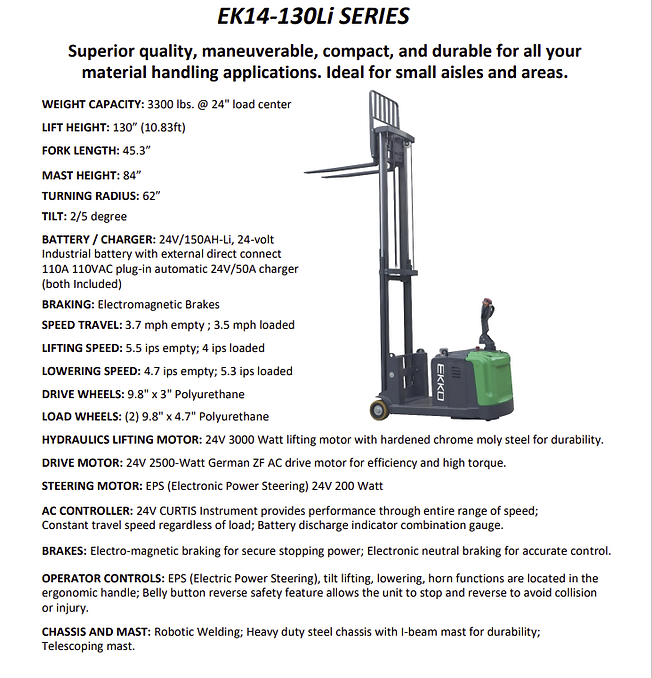

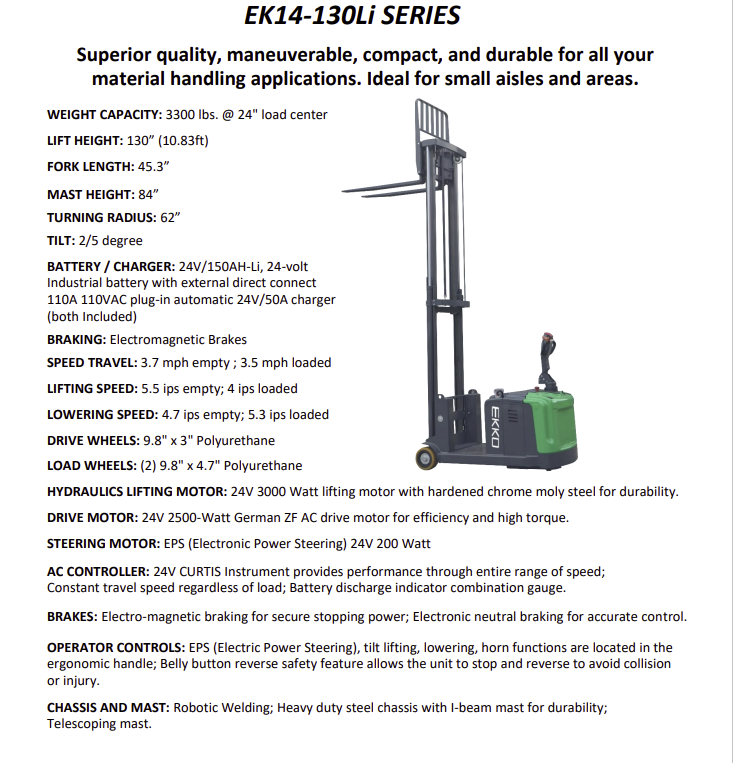

Product Description
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 3300 lbs
- Raised Height 130" (10.83ft)
- Adjustable Forks 8.6-28.3"
- Fork Length 45.3"
- Tilt 2/5 Degree
- Curtis Controller
- 24V Center Drive Motor
- 24V Lift Motor
- Battery 24V/150Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery Included
- 3 Years Limited Warranty
General
Model
EK14-130LI
Model
EK14-130Li
Drive type
Electric
Type of operation
Walike type
Load Capacity Q (LBS)
3300
Load Centre c (Inch)
24
Distance between fork backrest and front wheel x (Inch)
6
Wheelbase y (Inch)
47
Service Weight（with battery） LBS
3750
Tire material
PU
Driving wheel size Φ×w(Inch)
ϕ9.8×3.1
Front wheel size Φ×w(Inch)
ϕ9.84×4.71
No of Driving wheel,Balance wheel/Bearing wheel(X=Driving wheel
2/1X
Load capacity
Power
Operator type
Stand
Mast/fork carriage tilt, forward/backward α/β (°)
2/5

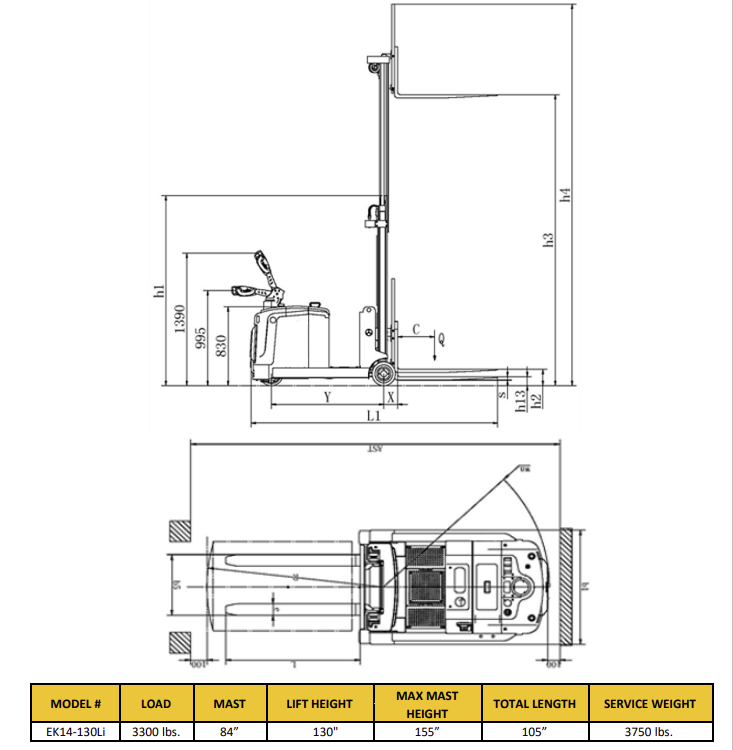

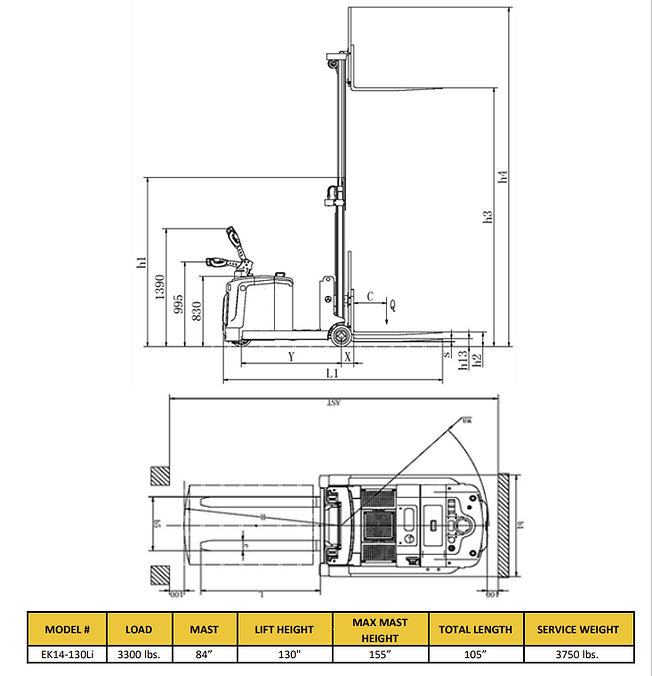

Lowered mast height h1 (Inch)
84
Free lift height h2 (Inch)
4
Lift height h3 (Inch)
130
Extended mast height h4 (Inch)
155
Height of seat/stand-on platform h7 (mm)
5
Fork carriage width (in)
3.5
Overall length l1 (Inch)
105
The max driving speed laden/unladen (in/h)
16850/204724
Overall Width b1(Inch)
39
Fork Size s/e/l (Inch)
1.4/4/37
Fork Width b5 (Inch)
8.7-28
Ground clearance under mast m1 (Inch)
2.4
Steering Motor
24V/0.2kw
Aisle width for pallets 1000*1200 crossways Ast (Inch)
119
Aisle width for pallets 800*1200 lengthways Ast (Inch)
123
Turing Radius Wa (Inch)
62
Lifting Speed load/unload (in/s)
4/5.5
Lowered Speed load/unload (in/s)
5.3/4.7
Maximum gradeability load/unload (%)
6/10
Charger
24V/50A
Drive Motor (kW)
2.5
Lift motor (kw)
3.0
Battery voltage/rate capacity (V/Ah)
24/150AH-Li
