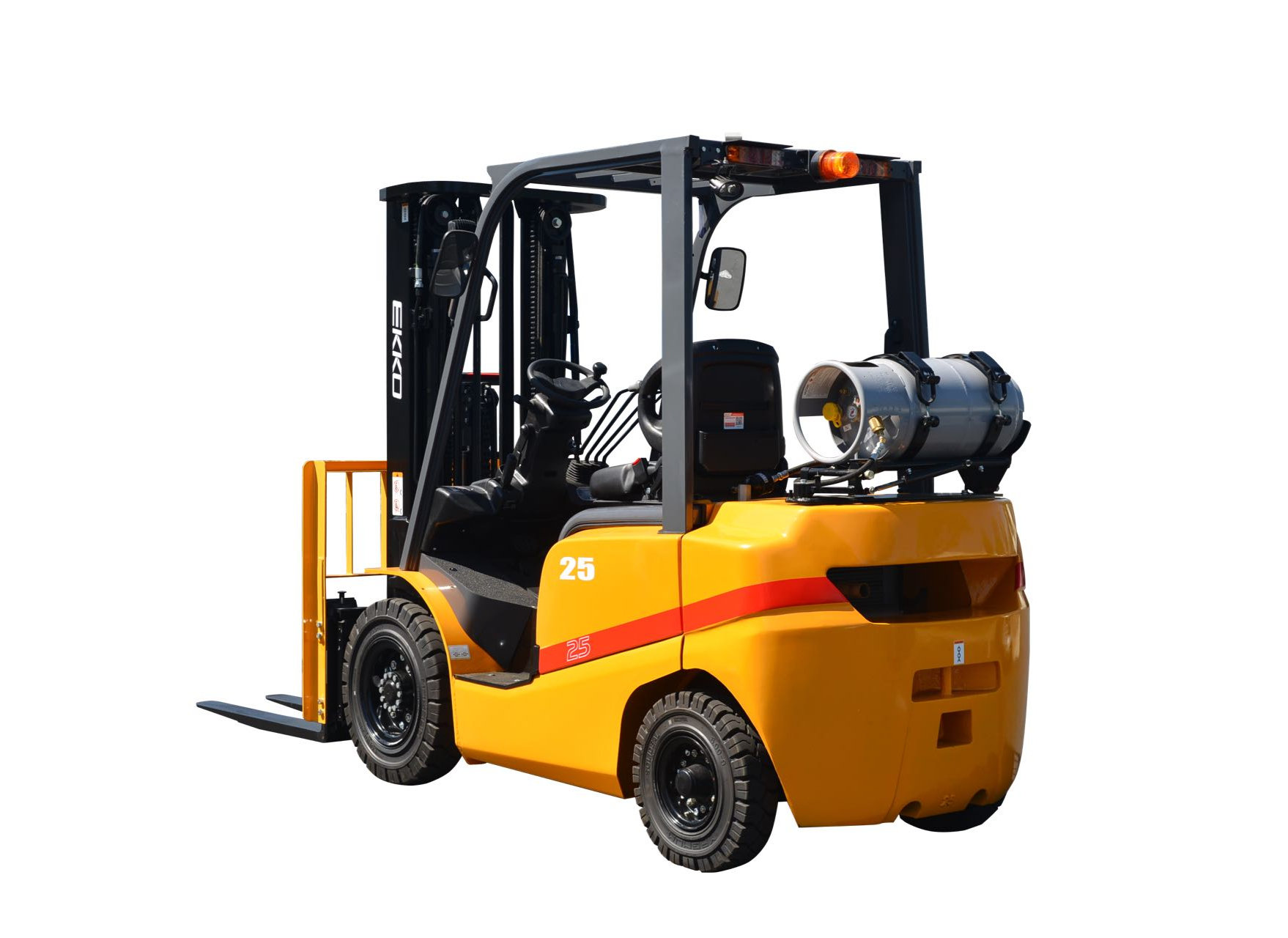

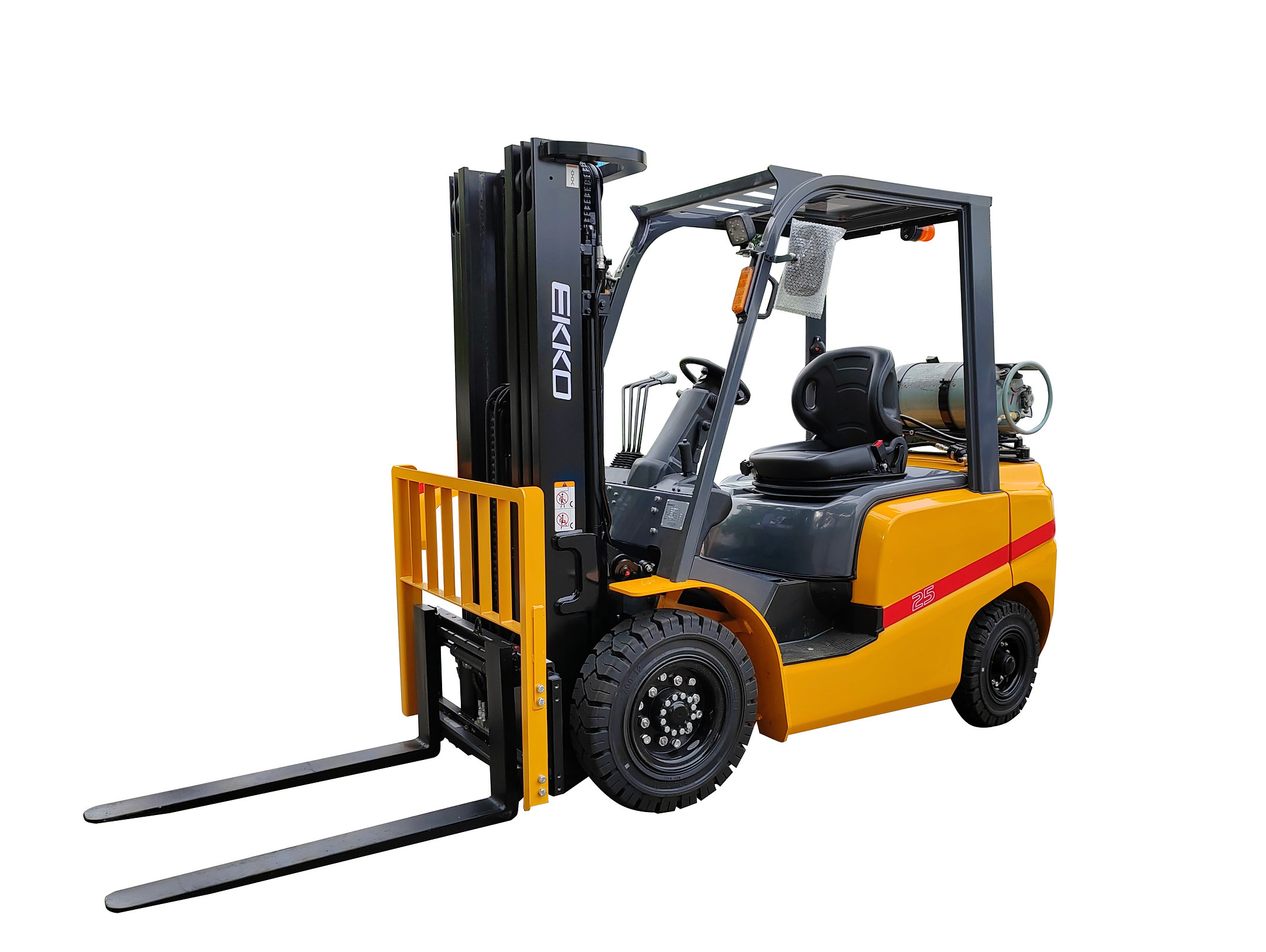

EKKO EK20TLP Forklift with solid pneumatic tires 4000 lbs., cap.
The EKKO EK20TLP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.This unit is manufactured with high durable quality, Tier 4 EPA compliant with the PSI 2.4L engine and competitive pricing.
Product Description
- The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard's front leg
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and autombile type double combined switch effectively improve driving comfort level.
- Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
- Lowering damping device inside the lifting system reduces mast's shock and vibration, avoiding noise caused by goods falling to the ground.
- Small turning radius makes steering flexible and easy.
- with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engine satisfies the CARB 4 regulation
General
Model
EK20TLP
Drive type
LPG
Type of operation
Propane
Load Capacity LBS
4000
Load Center in
24
Liftheight in
185
Wheelbase in
62.9
Service Weight LBS
7716
Tire material
Solid Pneumatic Tire
Wheel
7.00-12-12PR/6.00-9-10PR
Service brake
Hydraulic Floor Pedal
Overall width in
45.2
Overall length with forks in
141.8
Overall lengthwithout forks in
96.8
Min ground clearance (at the mast) in
4.3
Max traveling speed (loaded/unloaded) mph
10.6/11.8
Mast Overall height in
83
Free liftingheight in
43.7
Overal Height w/ forks lifted in
225
Fork Size in
42.1x4.8x1.5
Battery V/ Ah
12/60
Engine Mode
PSI 2.4
Engine rated power HP/rpm
LPG: 63/2700
