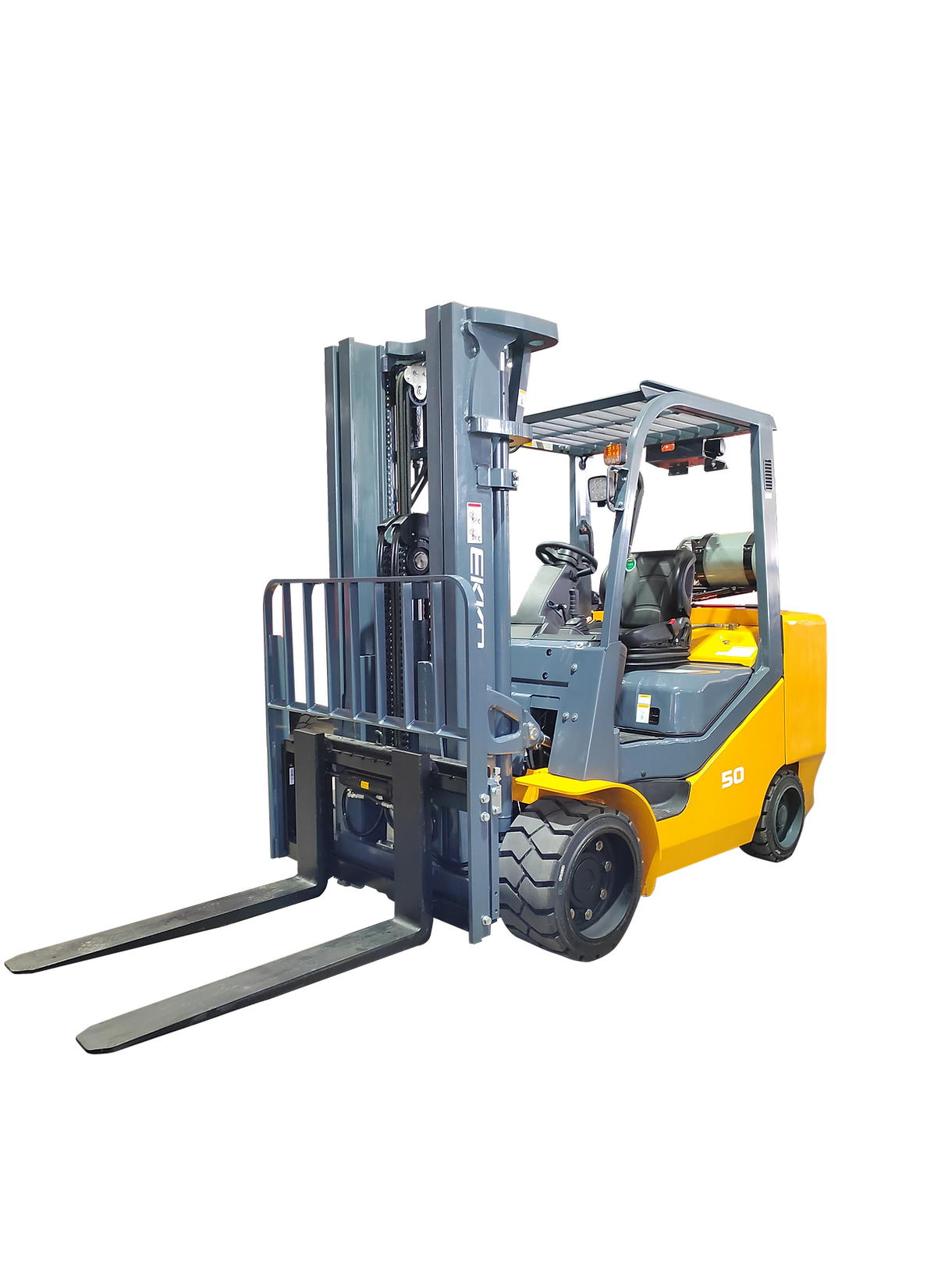

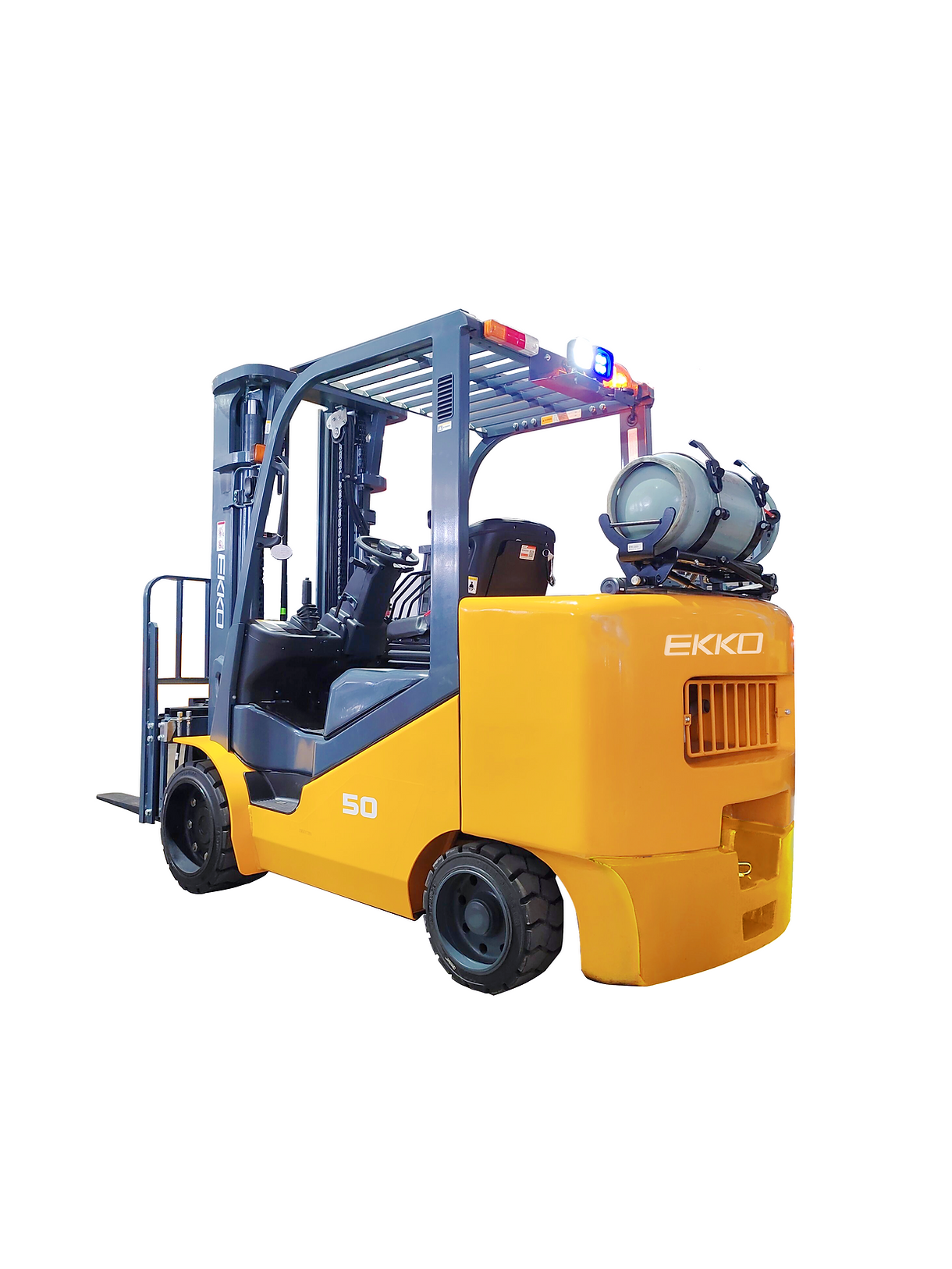

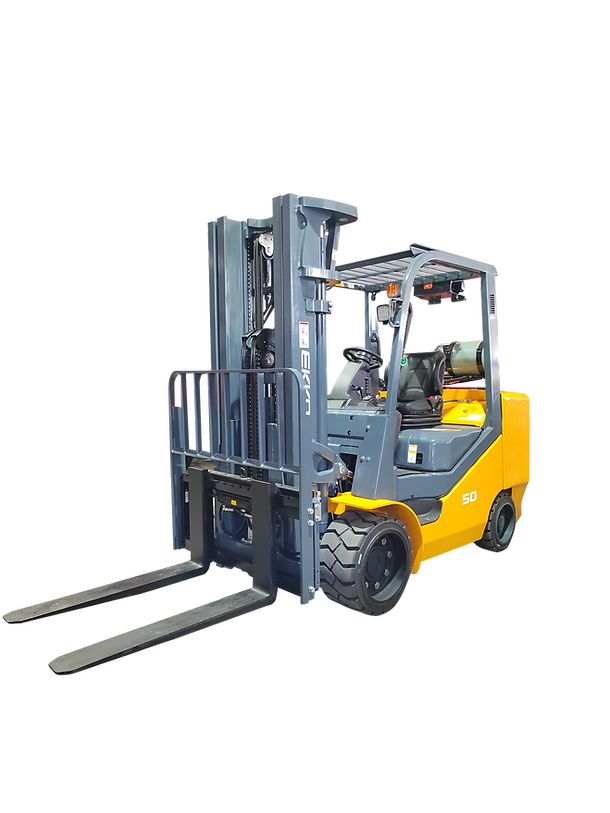

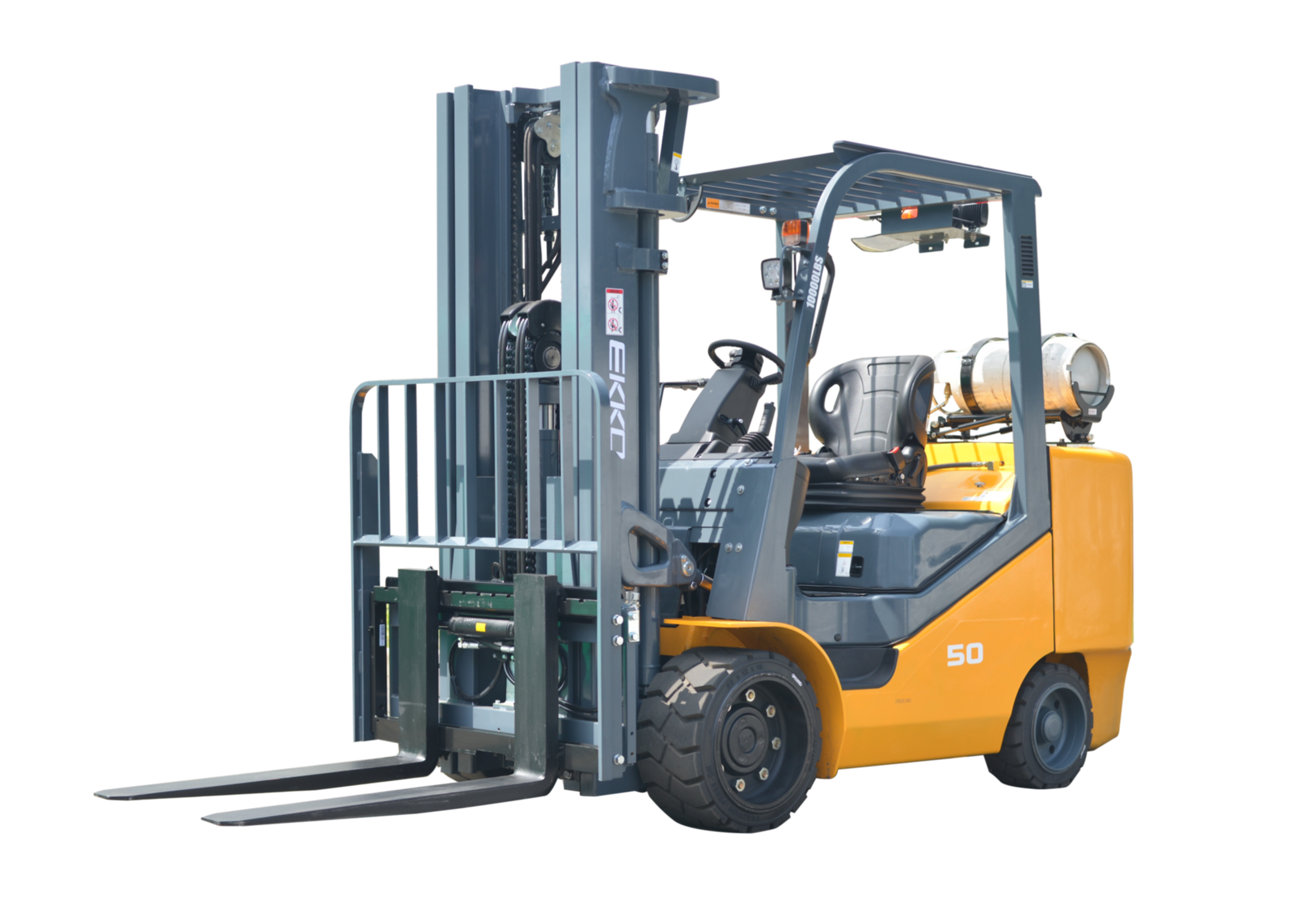

EKKO EK50LP Forklift LPG 10,000 lbs cap, 185" Lift Height
The EKKO EK50LP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.This unit is manufactured with high durable quality, Tier 4 EPA compliant with the Kubota engine and competitive pricing.
Product Description

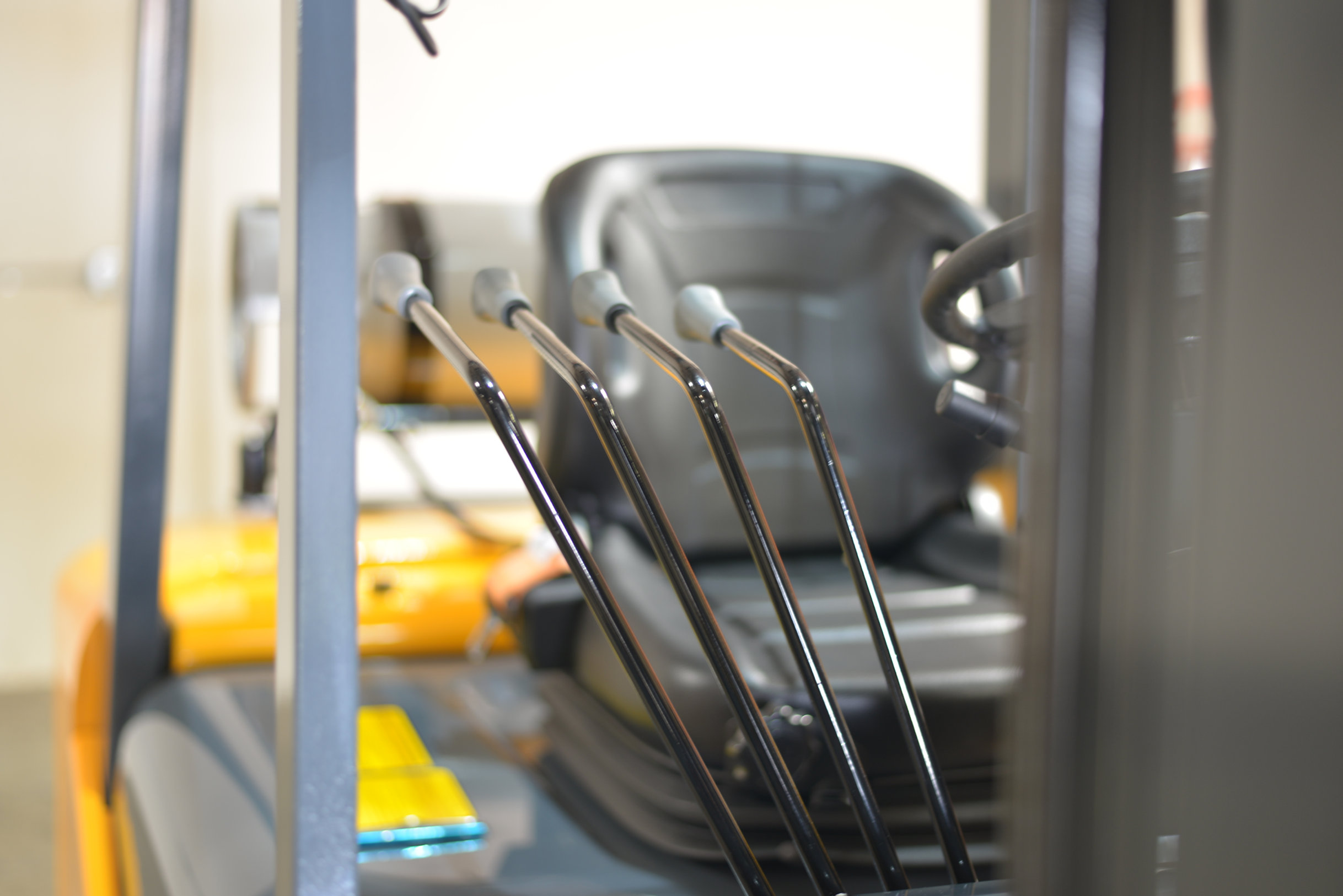

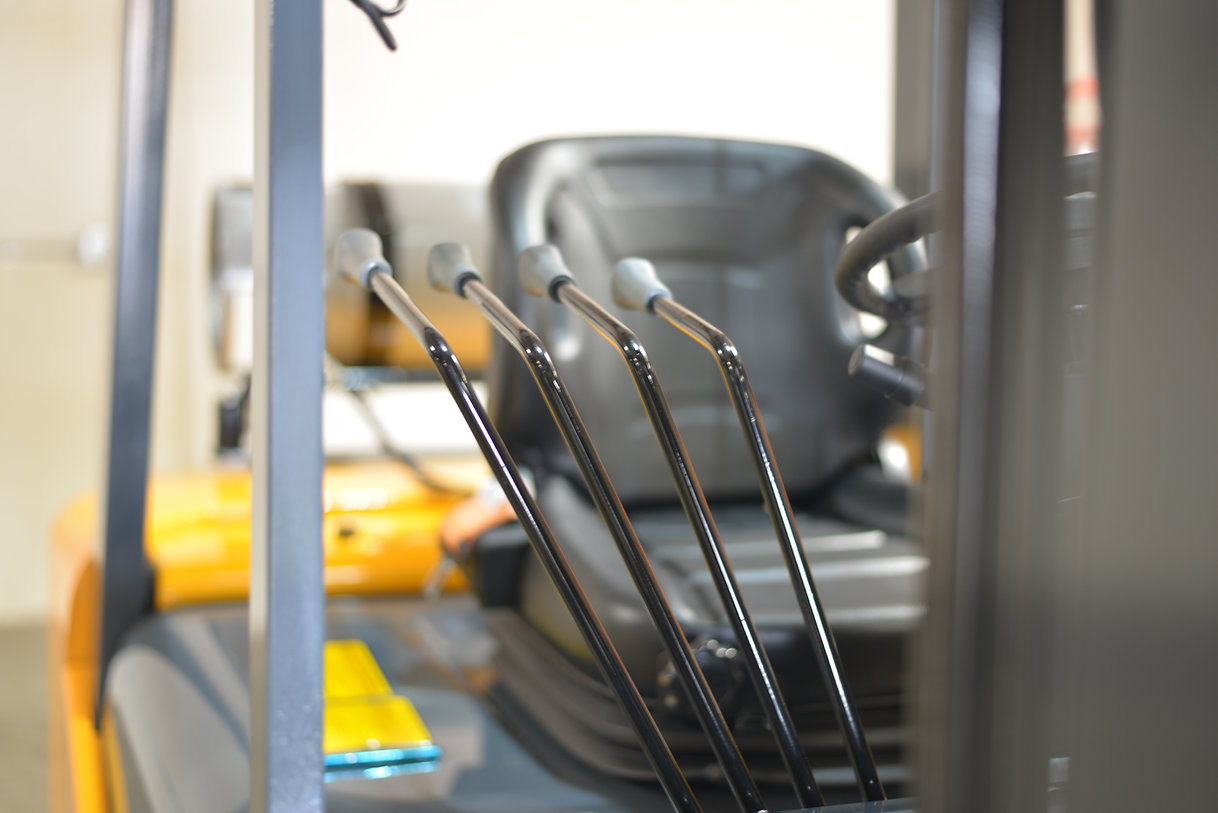

• Multifunction instrument panel - motoring for Safety and efficient operation• Operator compartment- nonslip entrance step, wider access & leg room. • Adjustable steering column limiting operator arm and shoulder fatigue. • Excellent Operator visibility. • Integral Heavy-Duty Chassis- ensuring driver protection • Steer axle pivots to 80 degrees for tighter turning radius. • Hydraulic controls None
General
Model
EK50LP
Drive type
LPG
Type of operation
Propane
Load Capacity LBS
10,000
Load Center in
24
Liftheight in
185
Wheelbase in
61.8
Service Weight LBS
16,250
Tire material
Pattern Cush. Tire
Traction Pin Height in
11.2
Service brake
Hydraulic Foot Pedal
Overall width in
55.9
Overall length with forks in
157
Overall lengthwithout forks in
109
Min ground clearance (at the mast) in
4.3
Max traveling speed (loaded/unloaded) mph
10.5/11.2
Mast Overall height in
91.9
Free liftingheight in
44.3
Backrest height (from the surface of the forks) in
47.6
Fork Size in
48x5.9x1.97
Parking Brake
Mechanicl Hand Lever
Engine Mode

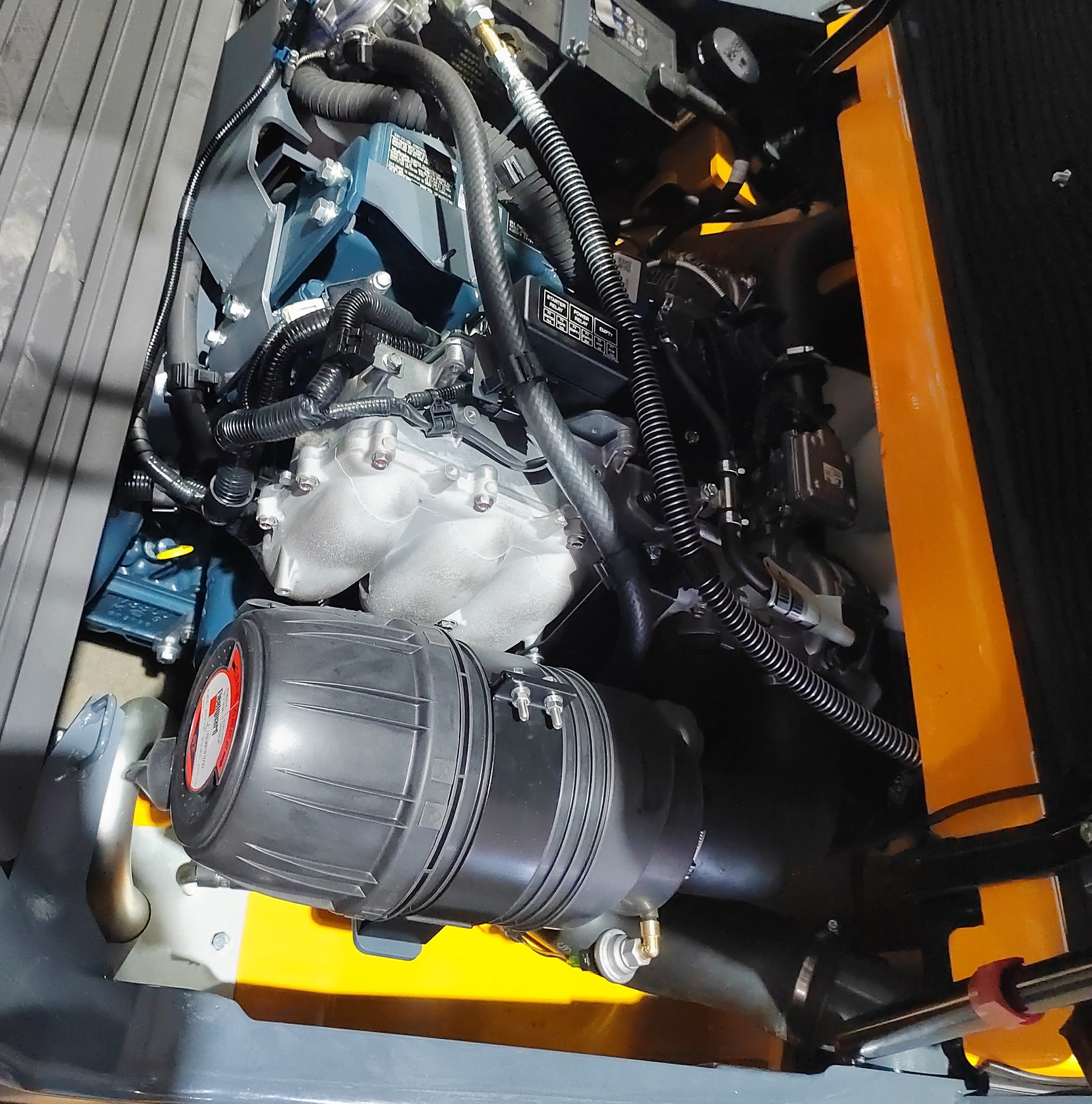

Kubota WG3800
Engine rated power HP/rpm
63.2
