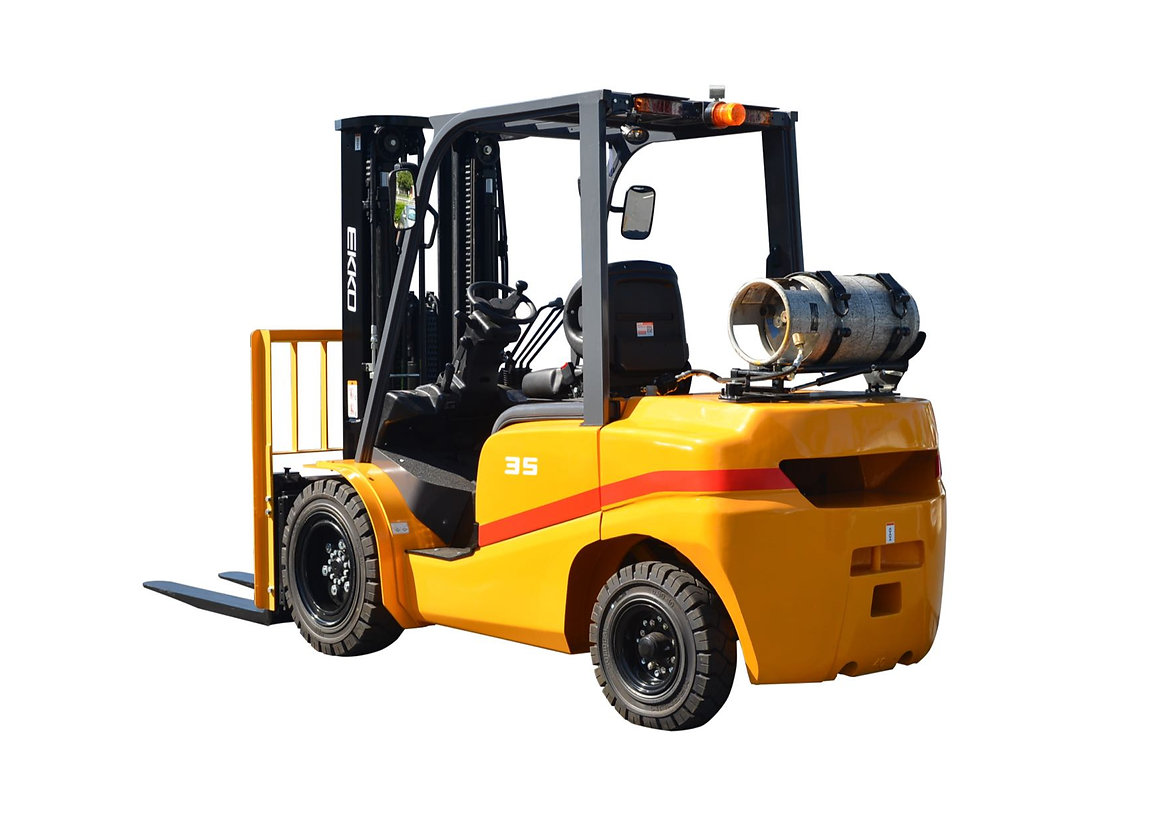

EKKO EK35TLP Forklift with solid pneumatic tires 7000 lbs., cap.
The EKKO EK35TLP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.This unit is manufactured with high durable quality, Tier 4 EPA compliant with the PSI 2.4L engine and competitive pricing.
Product Description
- The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard's front leg
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and autombile type double combined switch effectively improve driving comfort level.
- Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
- Lowering damping device inside the lifting system reduces mast's shock and vibration, avoiding noise caused by goods falling to the ground.
- Small turning radius makes steering flexible and easy.
- with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engine satisfies the CARB 4 regulation
General
Model
EK35TLP
Drive type
LPG
Type of operation
Propane
Load Capacity LBS
7000
Load Center in
24
Liftheight in
185
Wheelbase in
66.9
Service Weight LBS
10,967
Tire material
Solid Pneumatic Tire
Wheel
28x9-15-12PR/6.50-10-10PR
Service brake
Hydraulic Floor Pedal
Overall width in
50.5
Overall length with forks in
153
Overall lengthwithout forks in
108
Min ground clearance (at the mast) in
4.7
Max traveling speed (loaded/unloaded) mph
11/12.1
Mast Overall height in
86.2
Free liftingheight in
37.9
Overal Height w/ forks lifted in
234
Fork Size in
42x4.9x1.9
Battery V/ Ah
12/60
Engine Mode
PSI 2.4
Engine rated power HP/rpm
LPG: 63/2700
