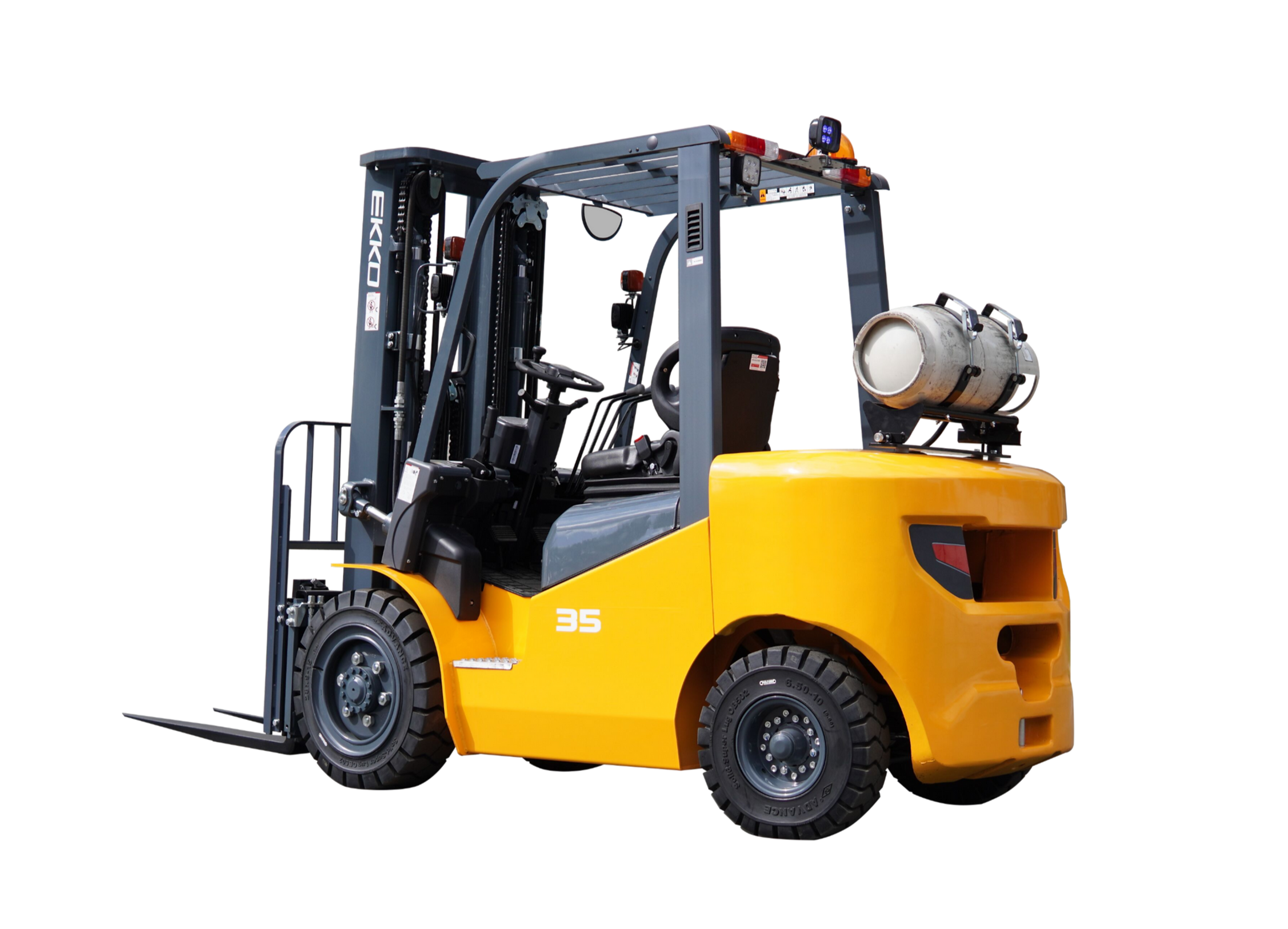

EKKO EK35LP Pneumatic Forklift LPG 7000 lbs cap, 189" Lift Height
The EKKO EK35LP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.This unit is manufactured with high durable quality, Tier 4 EPA compliant with the Kubota engine and competitive pricing.
Product Description
• Multifunction instrument panel - motoring for Safety and efficient operation• Operator compartment- nonslip entrance step, wider access & leg room. • Adjustable steering column limiting operator arm and shoulder fatigue. • Excellent Operator visibility. • Integral Heavy-Duty Chassis- ensuring driver protection • Steer axle pivots to 80 degrees for tighter turning radius. • Hydraulic controls None
General
Model
EK35LP
Drive type
LPG
Type of operation
Propane
Load Capacity LBS
7,000
Load Center in
24
Liftheight in
189
Wheelbase in
68.9
Service Weight LBS
10,605
Tire material
Solid Pneumatic Tire
Traction Pin Height in
12.2
Service brake
Hydraulic Foot Pedal
Overall width in
48.2
Overall length with forks in
150.4
Overall lengthwithout forks in
108.3
Min ground clearance (at the mast) in
5.3
Traveling speed mph
11.875
Mast Overall height in
89.4
Free liftingheight in
42.9
Backrest height (from the surface of the forks) in
46.3
Fork Size in
42.1X4.9X1.97
Parking Brake
Mechanical Hand Brake
Engine Mode
Kubota WG2503
Engine rated power HP/rpm
60.1/2400
