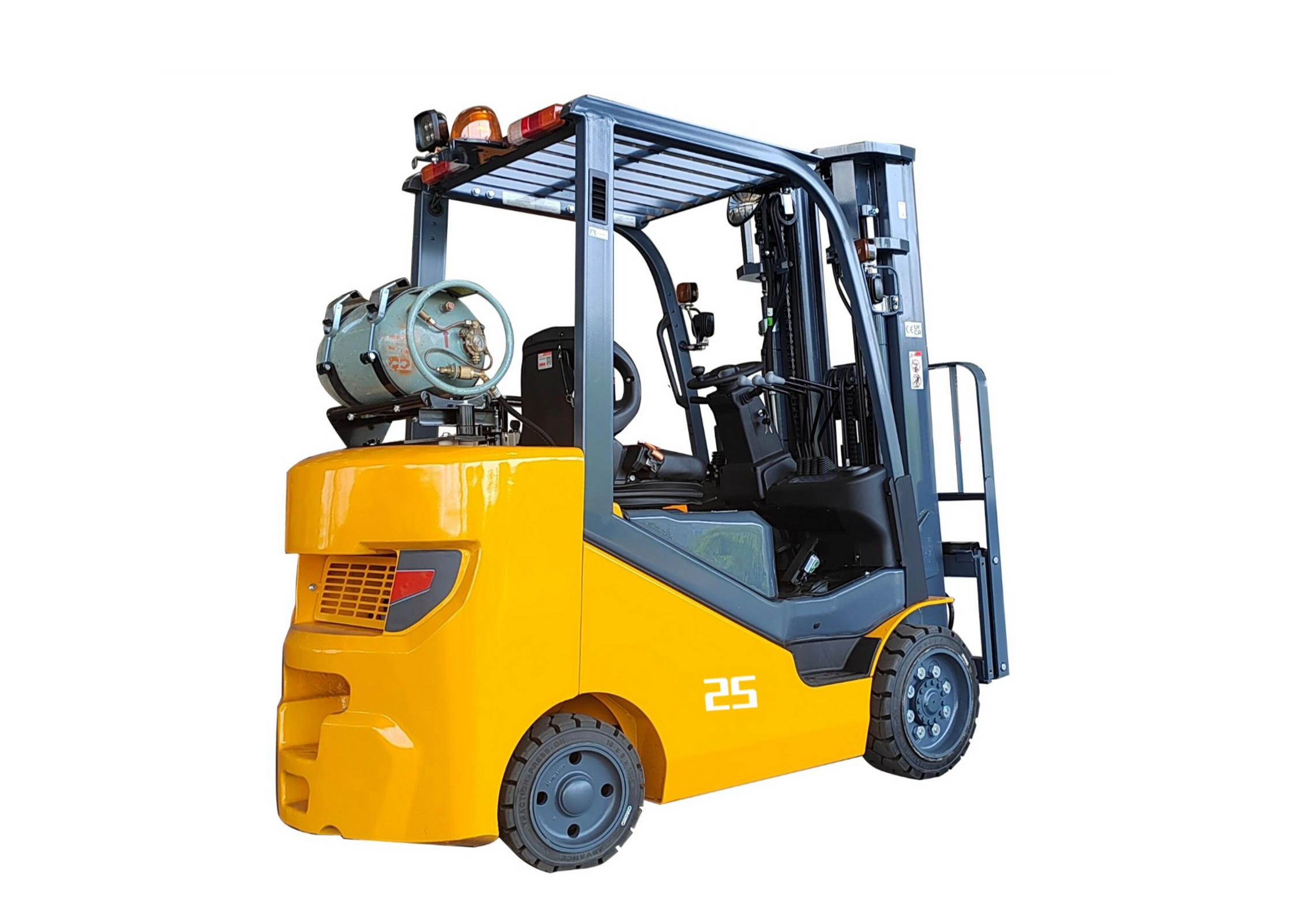

EKKO EK25SLP Forklift with Pattern Cushion LPG 5000 lbs
The EKKO EK25SLP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.This unit is manufactured with high durable quality, Tier 4 EPA compliant with the PSI engine and competitive pricing.
Product Description
- The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard's front leg
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and autombile type double combined switch effectively improve driving comfort level.
- Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
- Lowering damping device inside the lifting system reduces mast's shock and vibration, avoiding noise caused by goods falling to the ground.
- Small turning radius makes steering flexible and easy.
- with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engine satisfies the CARB 4 regulation
General
Model
EK25SLP
Drive type
LPG
Type of operation
Propane
Load Capacity LBS
5000
Load Center in
24
Liftheight in
189
Wheelbase in
58
Service Weight LBS
9370
Tire material
Pattern Cushion Tire
Wheel size(Front / Rear) in
21x7-15/16x6-10.5
Service brake
Hydraulic Floor Pedal
Overall width in
42
Overall length with forks in
136.8
Overall lengthwithout forks in
94.5
Min ground clearance (at the mast) in
3.5
Max traveling speed (loaded/unloaded) mph
10.8/10.8
Mast Overall height in
85
Free liftingheight in
44
Backrest height (from the surface of the forks) in
40
Fork Size in
42x4.8x1.57
Battery V/ Ah
12/60
Engine Mode
Mitsubishi 4G64 (PSI Engine)
Engine rated power HP/rpm
LPG: 63/2700
