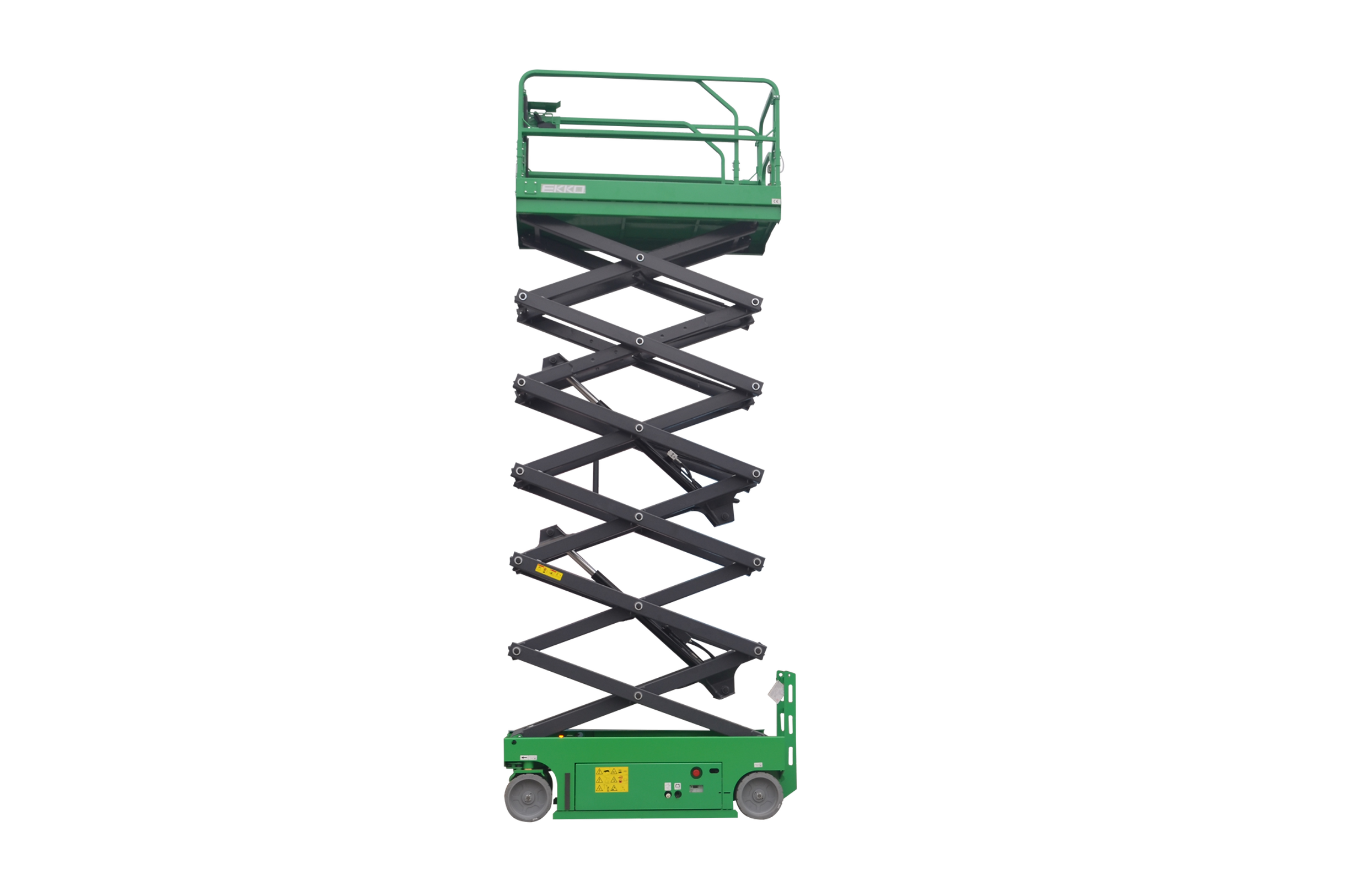

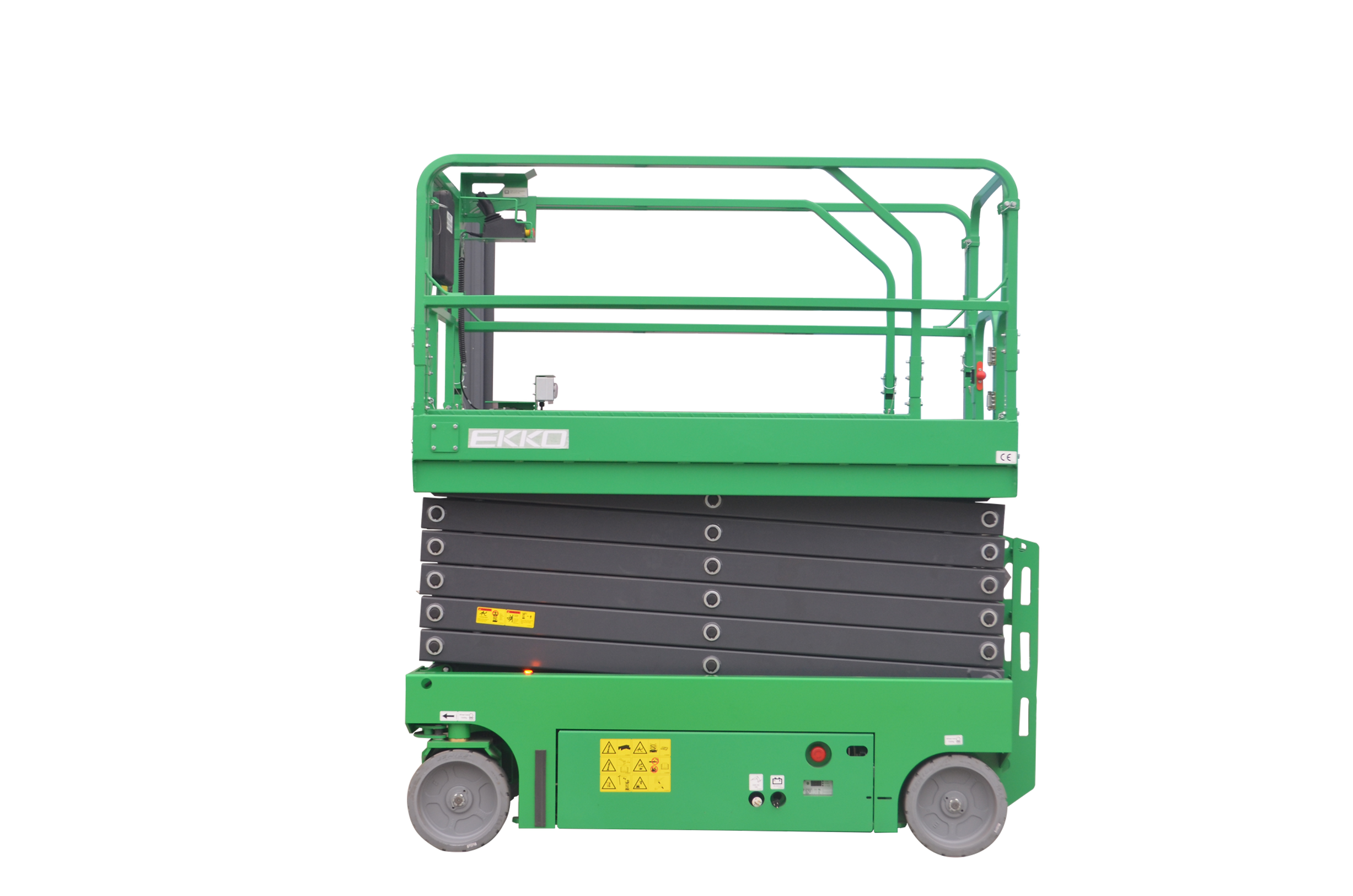

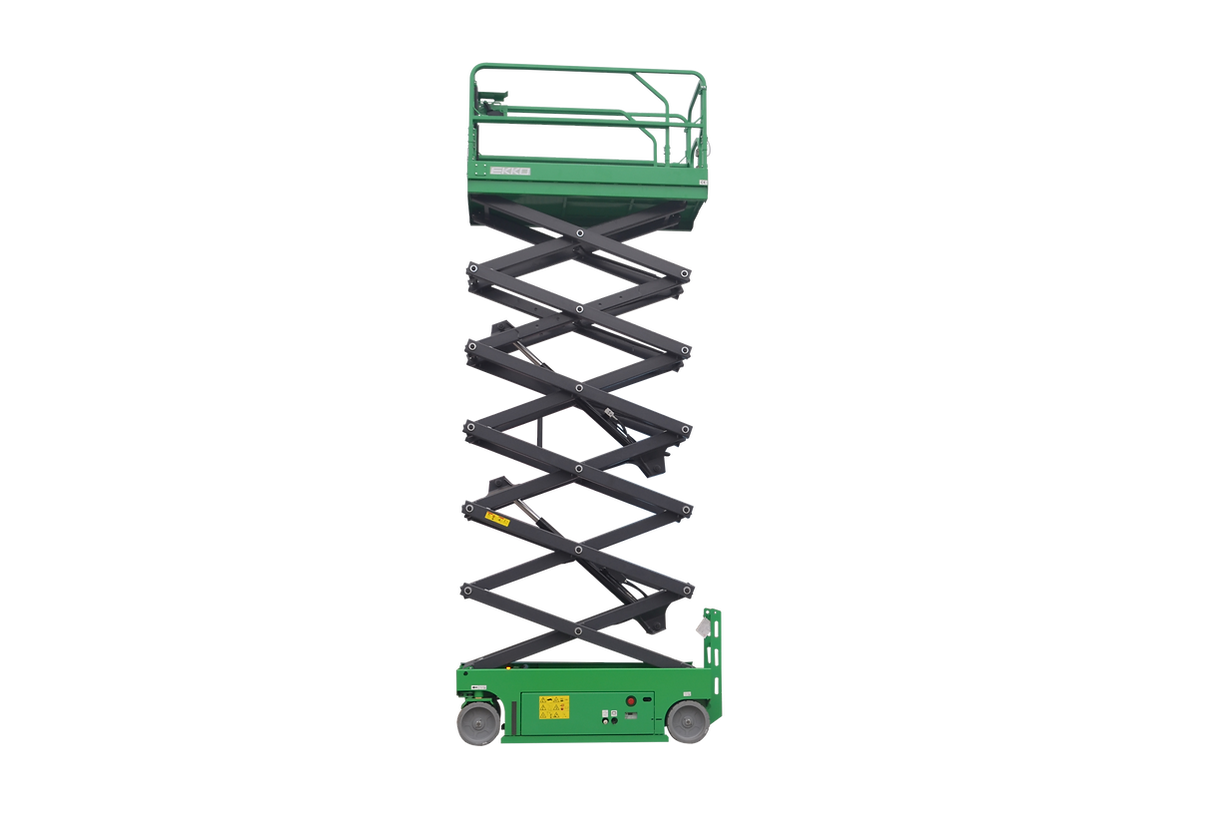

EKKO ES120E-Li Aerial Work Platform Lift Height 39' 468''
The EKKO ES120E-Li Scissor Aerial Work Platform is a 700-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.
Product Description
-Load Capacity 700 lbNone
General
Model
ES120E-LI

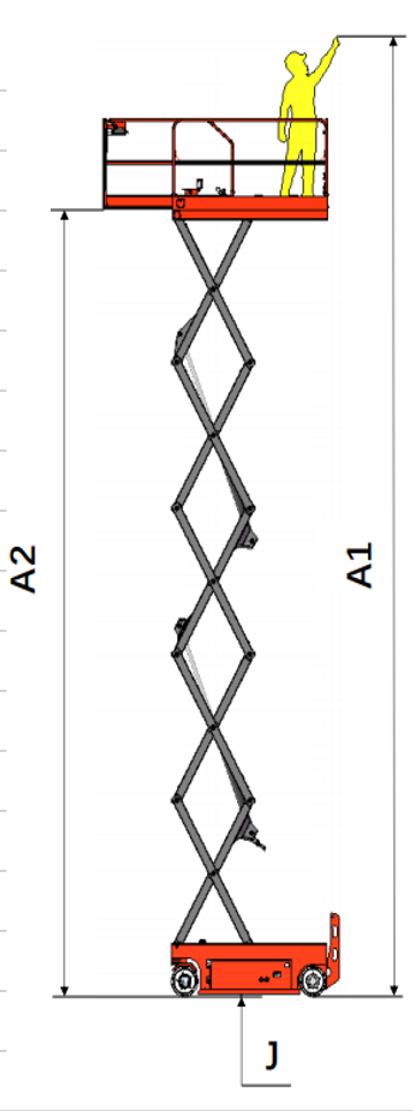

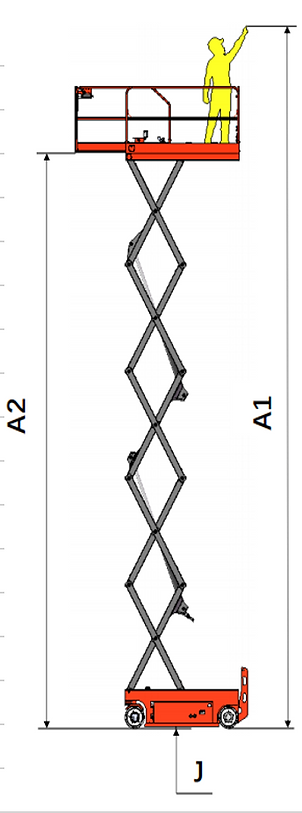

A1 Max working height Inch
TODO
A2 Max platform height Inch
TODO

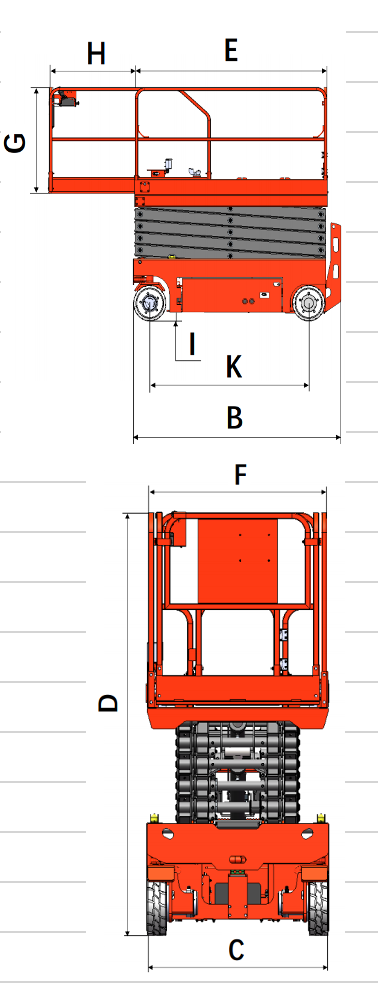

B Length Inch
94.5
C Width Inch
45.27
D Overall height (guardrail not folded) Inch
102"
Overall height (folding guardrail) Inch
77"
Platform size (length EX width FX height G) Inch
88.58x45.27
G Guardrail height Inch
43.3
H Platform extension size Inch
39.37
I Ground clearance (closed state) Inch
3.74
J Ground clearance (lifting state) Inch
0.78
K Wheelbase Inch
72.83
Maximum number of workers (indoor/outdoor)
2 / -
load rating LBS
700
Extended platform load rating LBS
265
Driving speed (folding state) km/h
0-3.2
Driving speed (lifting condition) km/h
0~0.8
Minimum Turning radius (inside) Inch
0
Minimum turning radius (outside) Inch
86.61
Rise/fall time s
52/52
Maximum allowable tilting Angle (front/left/right) °
3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s
0/0
Maximum allowable lateral force (indoor/outdoor) N
400/0
Gradeability %
30
control
proportional control
actuator
Double front wheels
braking
Double rear wheels
Tyre specification/type Inch
15*5
Lift/drive motor kw
3.3/0.7x2
Battery voltage/capacity V/Ah
25.6V/230AH
Charger input voltage VAC
25.6V
Charger output current A
36
control voltage VDC
24
Hydraulic tank capacity L
22
total weight lbs
6490
