EKKO ES80E Aerial Work Platform Lift Height 26.2' 315''

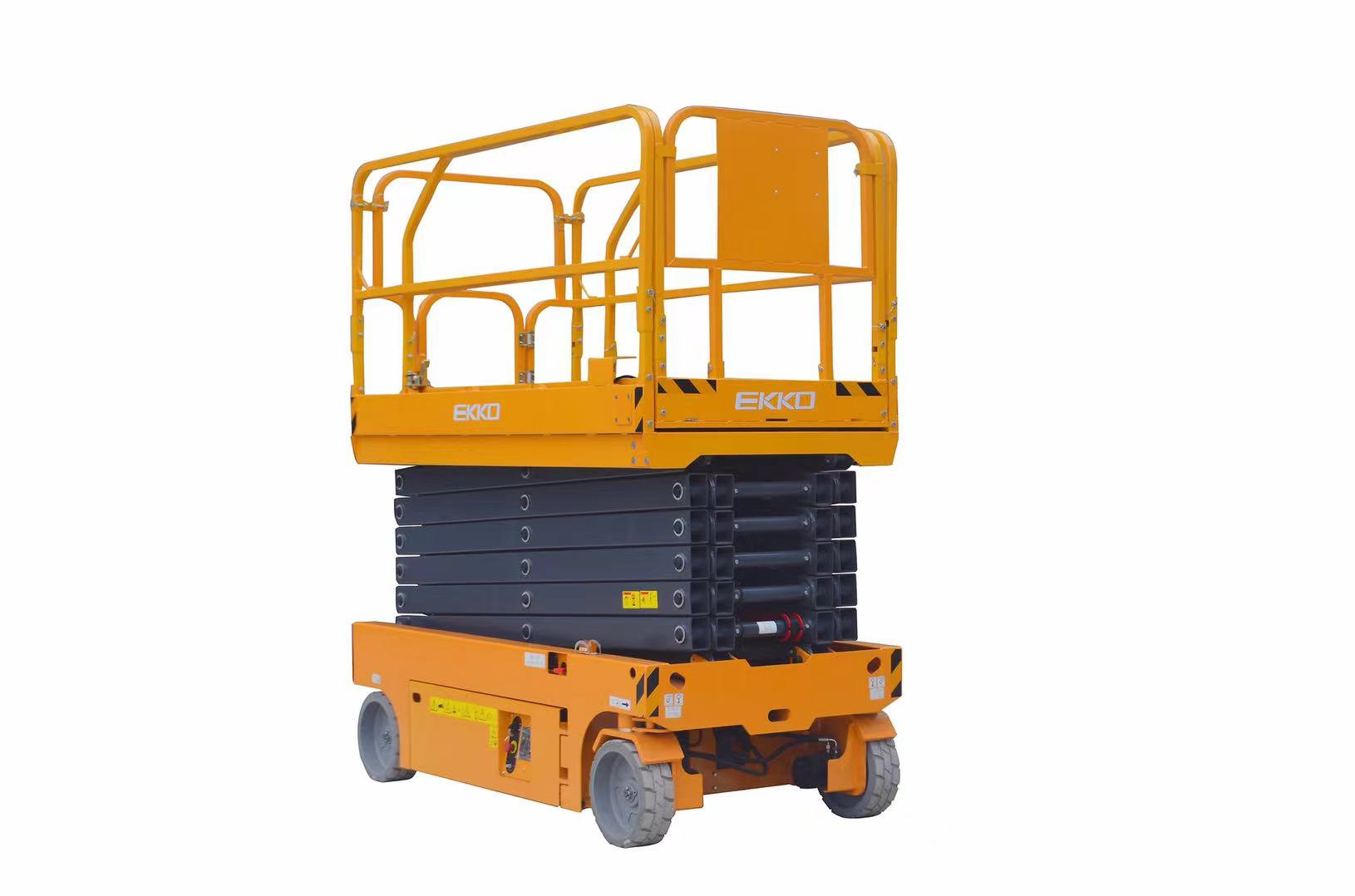

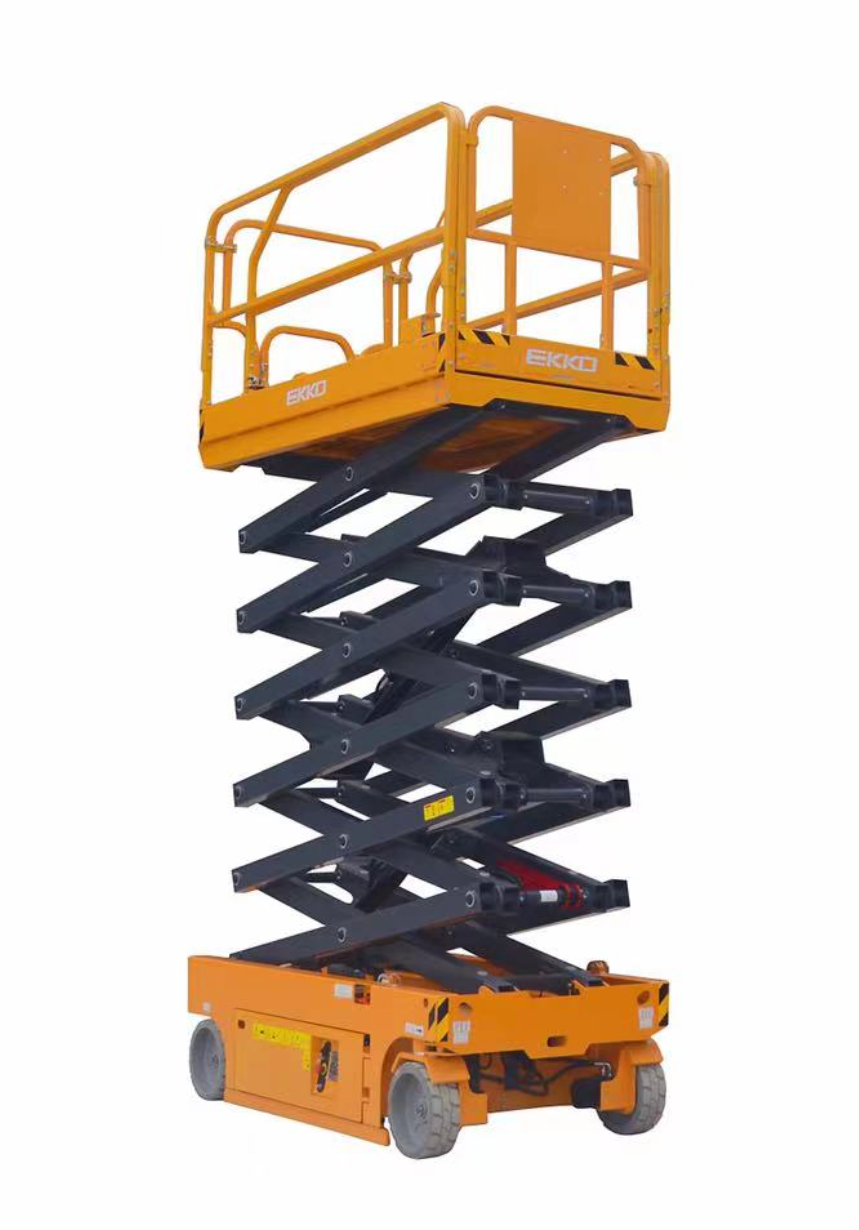

The EKKO ES80E Scissor Aerial Work Platform is a 990-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.
Product Description
-Load Capacity 990 lbNone
General
Model
ES80E

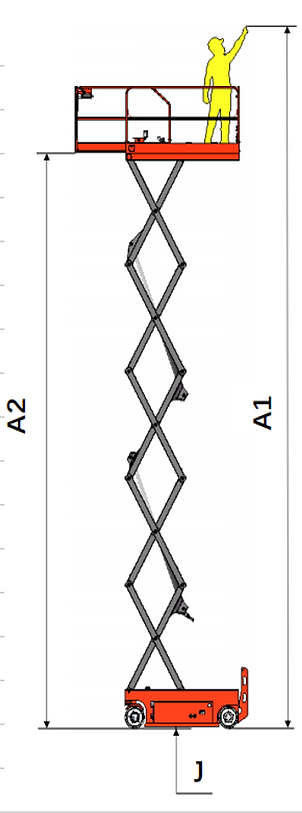

A1 Max working height Inch
TODO
A2 Max platform height Inch
TODO

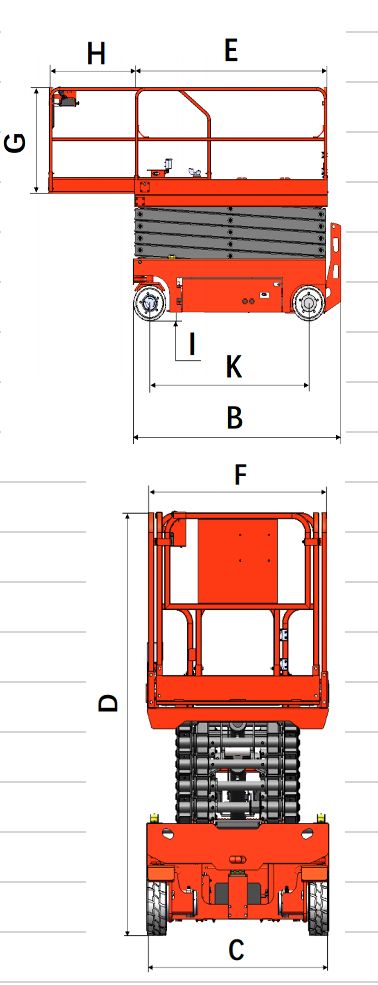

B Length Inch
94.5
C Width Inch
45.27
D Overall height (guardrail not folded) Inch
91.5
Overall height (folding guardrail) Inch
67
Platform size (length EX width FX height G) Inch
88.58x45.27
G Guardrail height Inch
43.3
H Platform extension size Inch
39.37
I Ground clearance (closed state) Inch
3.74
J Ground clearance (lifting state) Inch
0.78
K Wheelbase Inch
72.83
Maximum number of workers (indoor/outdoor)
2 / 1
load rating LBS
990
Extended platform load rating LBS
265
Driving speed (folding state) km/h
0-3.2
Driving speed (lifting condition) km/h
0~0.8
Minimum Turning radius (inside) Inch
0
Minimum turning radius (outside) Inch
86.61
Rise/fall time s
32/35
Maximum allowable tilting Angle (front/left/right) °
3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s
0/12.5
Maximum allowable lateral force (indoor/outdoor) N
400/200
Gradeability %
30
control
proportional control
actuator
Double front wheels
braking
Double rear wheels
Tyre specification/type Inch
15*5
Lift/drive motor kw
3.3/0.7x2
Battery voltage/capacity V/Ah
6x4/225
Charger input voltage VAC
100-240
Charger output current A
36
control voltage VDC
24
Hydraulic tank capacity L
22
total weight lbs
5412
