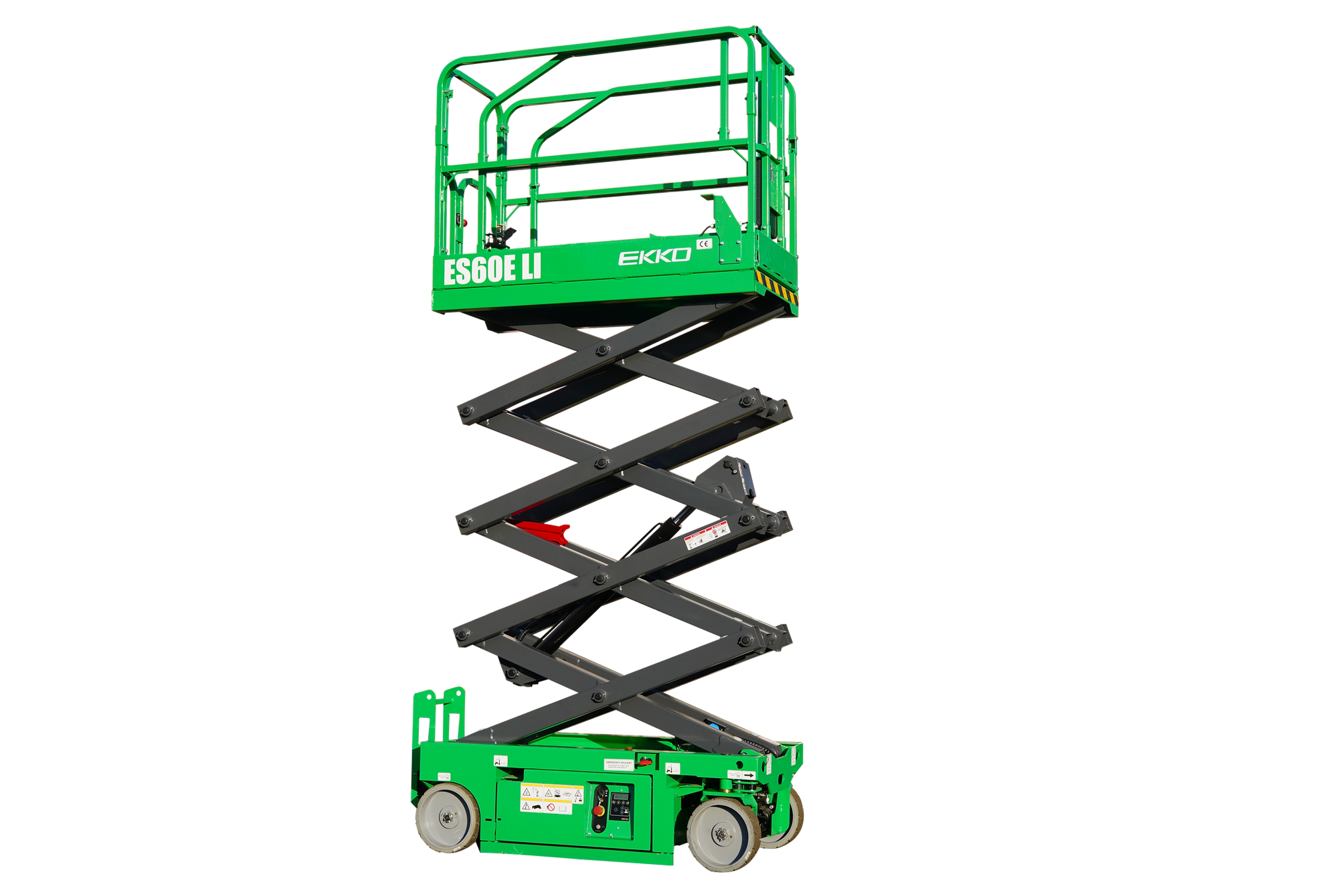

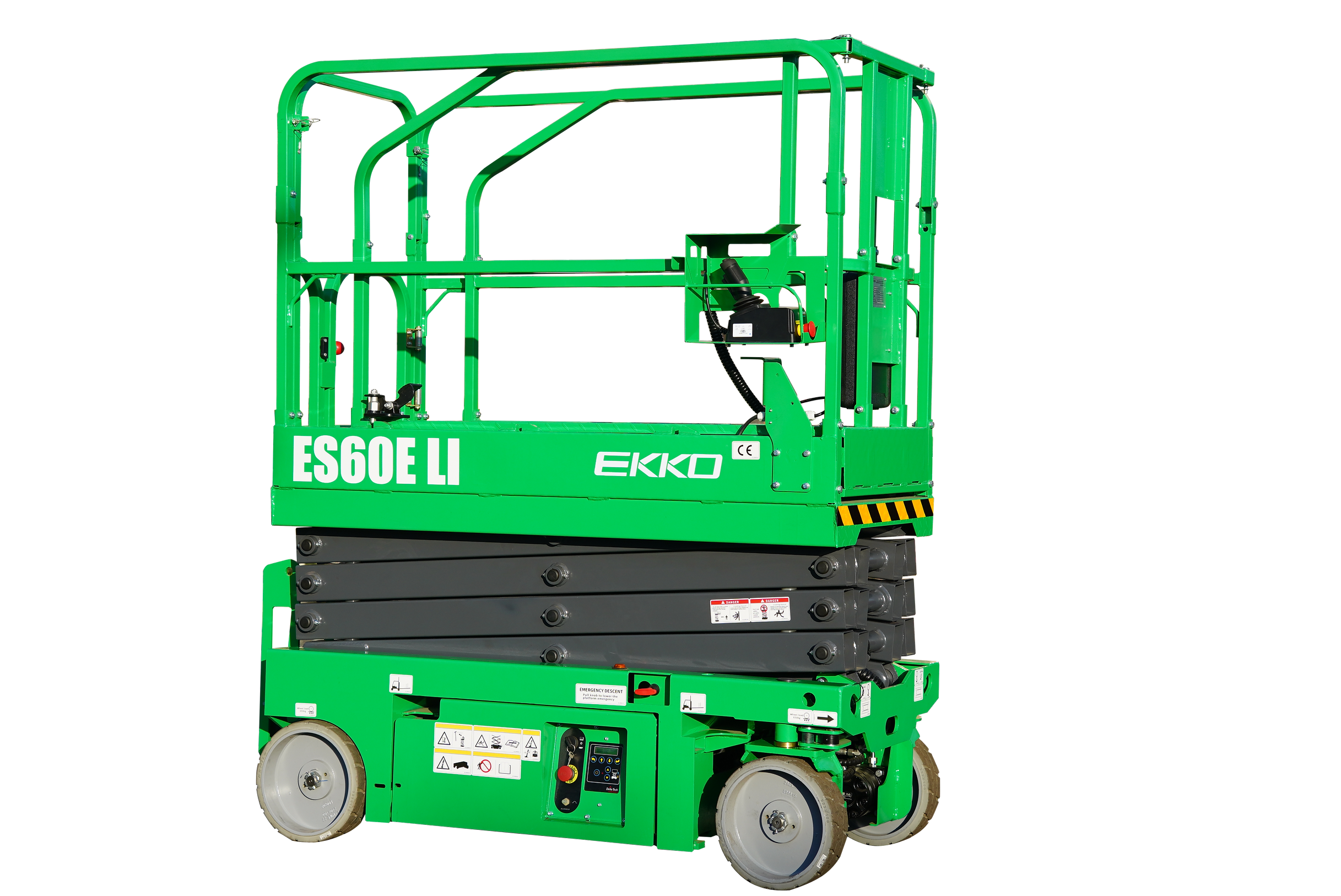

EKKO ES60E-Li Aerial Work Platform Lift Height 19' 228''
The EKKO ES60E-Li Scissor Aerial Work Platform is a 506-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.
Product Description
-Load Capacity 500 lbNone
General
Model
ES60E-LI

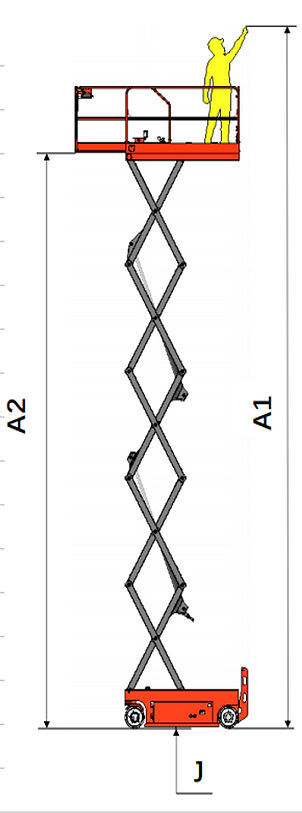

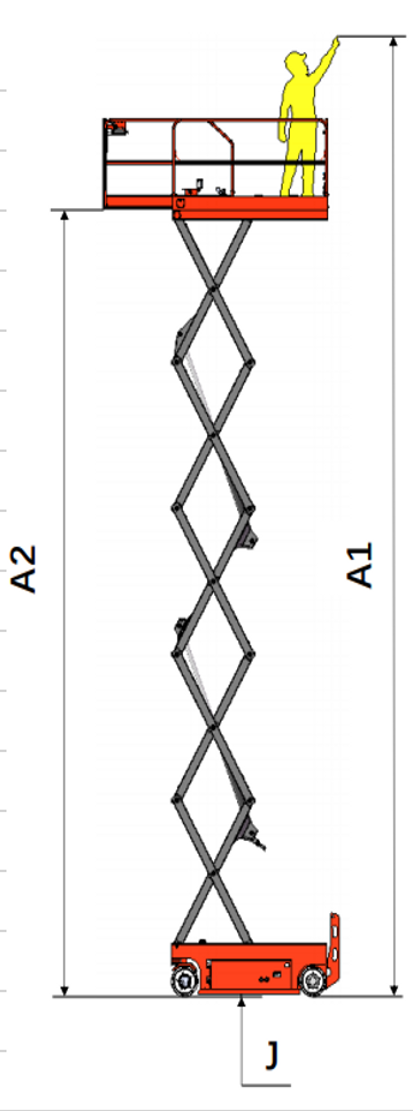

A1 Max working height Inch
TODO
A2 Max platform height Inch
TODO
B Length Inch
72.44
C Width Inch
29.92
D Overall height (guardrail not folded) Inch
85.75"
Overall height (folding guardrail) Inch
72.5"
Platform size (length EX width FX height G) Inch
64.96x29.92
G Guardrail height Inch
43.31
H Platform extension size Inch
35.43
I Ground clearance (closed state) Inch
2.36
J Ground clearance (lifting state) Inch
0.59
K Wheelbase Inch
1.36
Maximum number of workers (indoor/outdoor)
2 / –
load rating LBS
506
Extended platform load rating LBS
264
Driving speed (folding state) km/h
0~4
Driving speed (lifting condition) km/h
0~0.8
Minimum Turning radius (inside) Inch
0
Minimum turning radius (outside) Inch
61
Rise/fall time s
18/28
Maximum allowable tilting Angle (front/left/right) °
3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s
0/0
Maximum allowable lateral force (indoor/outdoor) N
400/0
Gradeability %
30
control
proportional control
actuator
Double front wheels
braking
Double rear wheels
Tyre specification/type Inch
12.71*3.93
Lift/drive motor kw
2.2/0.7x2
Battery voltage/capacity V/Ah
25.6V/150AH Lithium
Charger input voltage VAC
25.6V
Charger output current A
36A
control voltage VDC
24
Hydraulic tank capacity L
8
total weight lbs
3356
