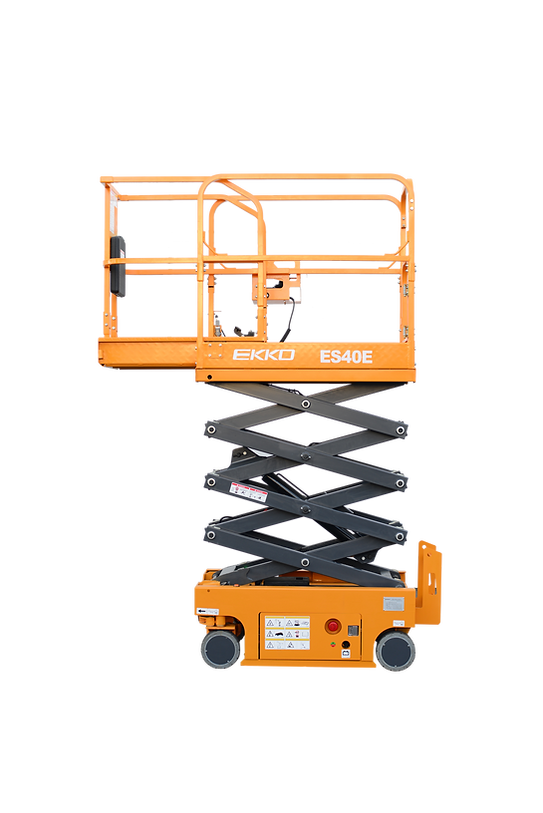

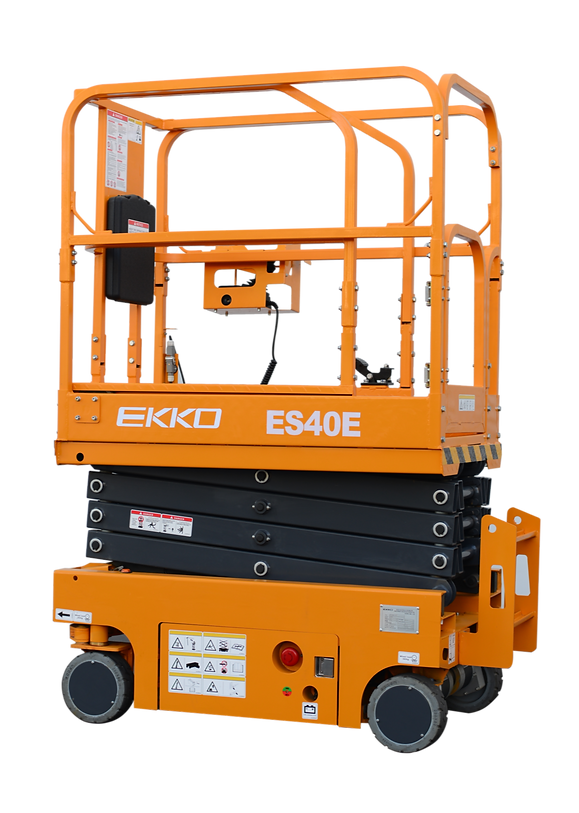

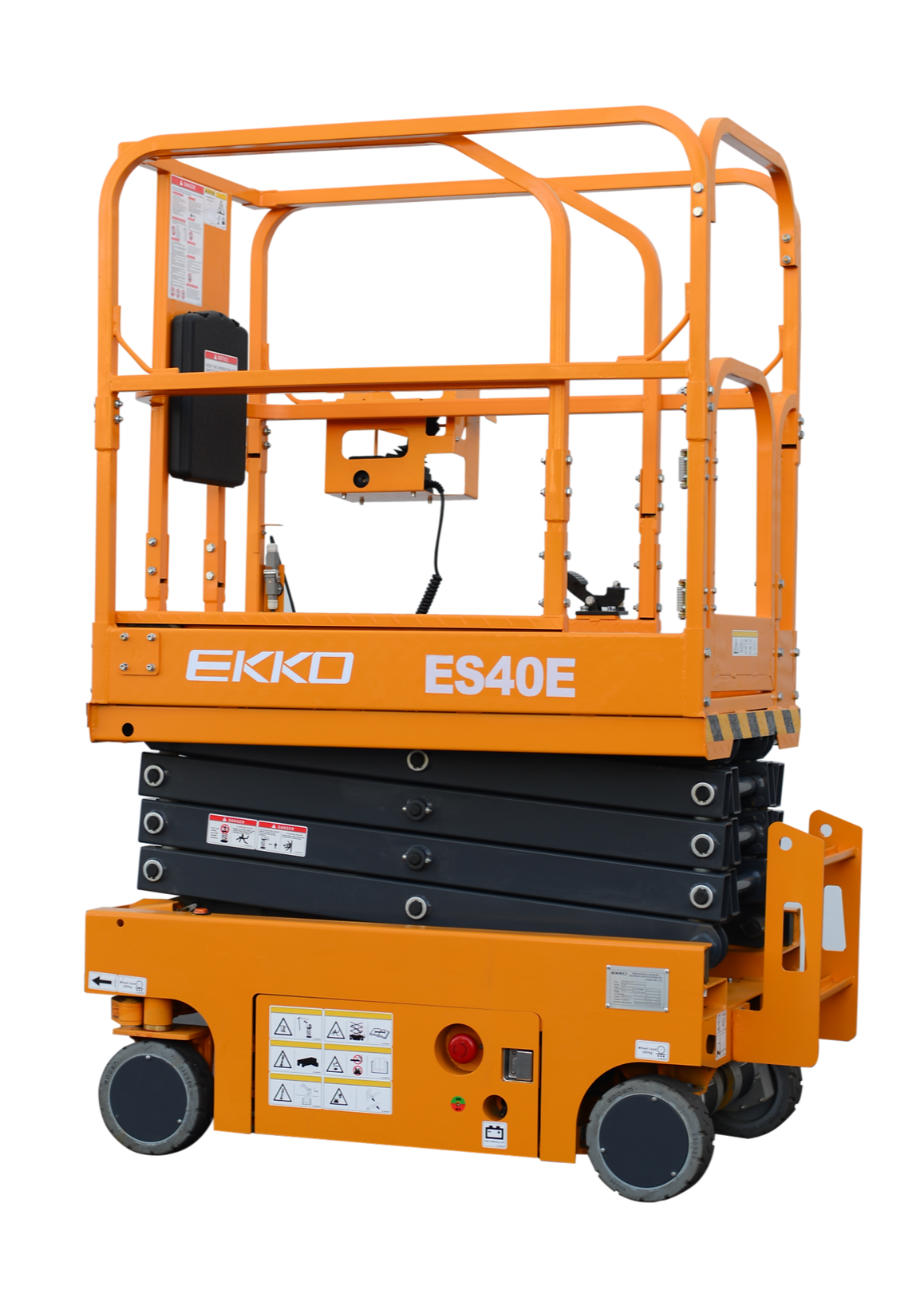

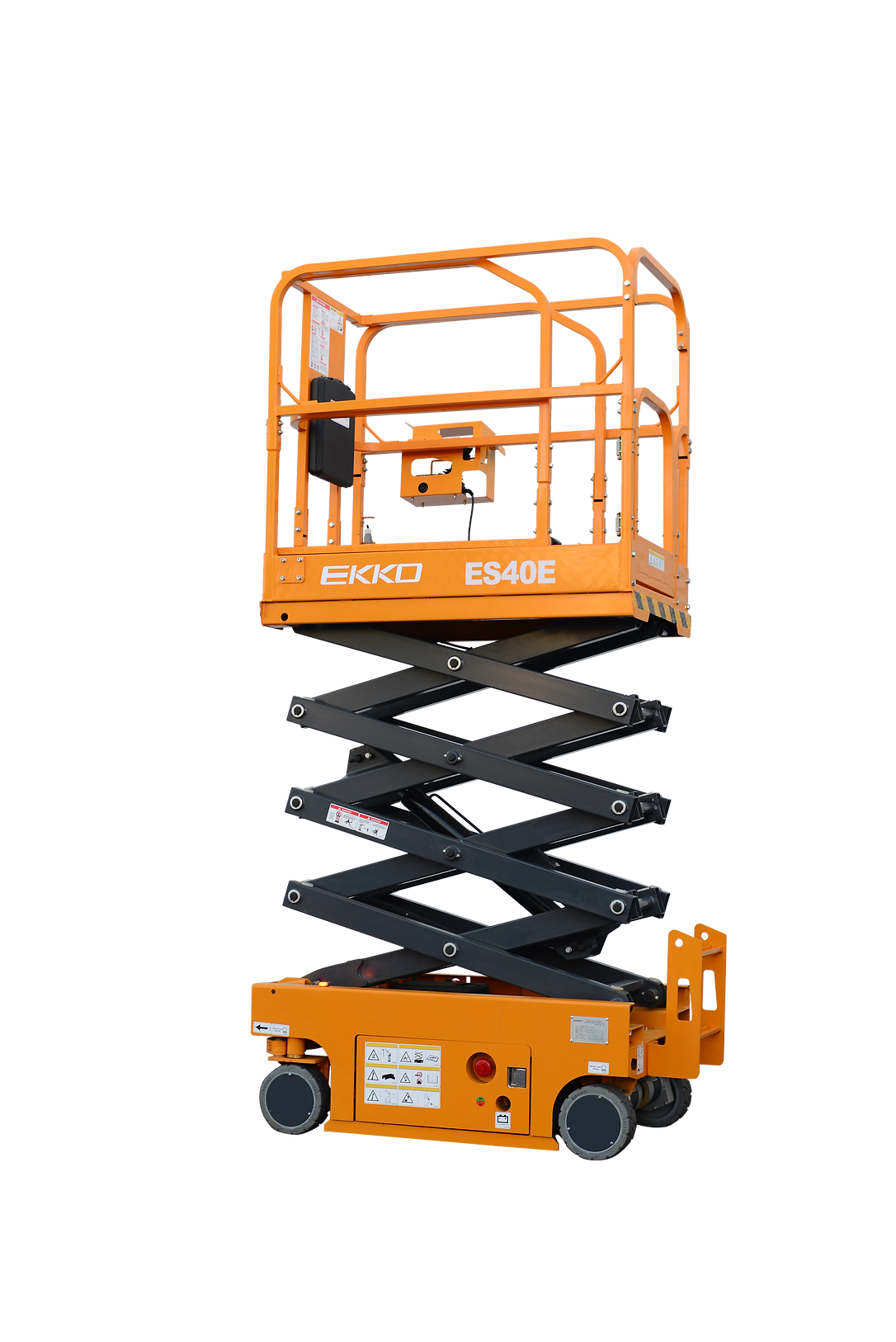

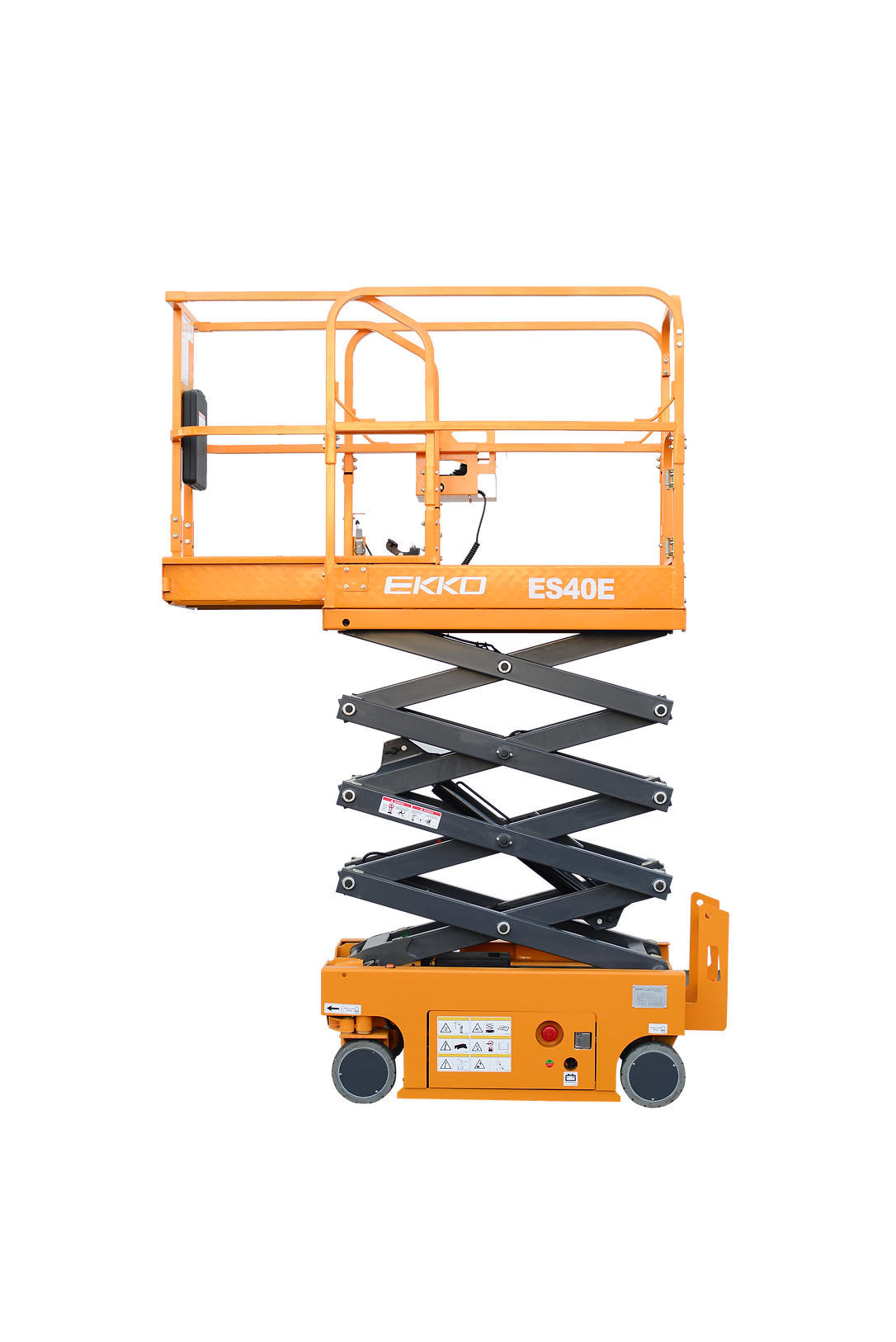

EKKO ES40E Aerial Work Platform Lift Height 13' 157''
The EKKO ES40E Scissor Aerial Work Platform is a 506-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.
Product Description
-Load Capacity 500 lbNone
General
Model
ES40E

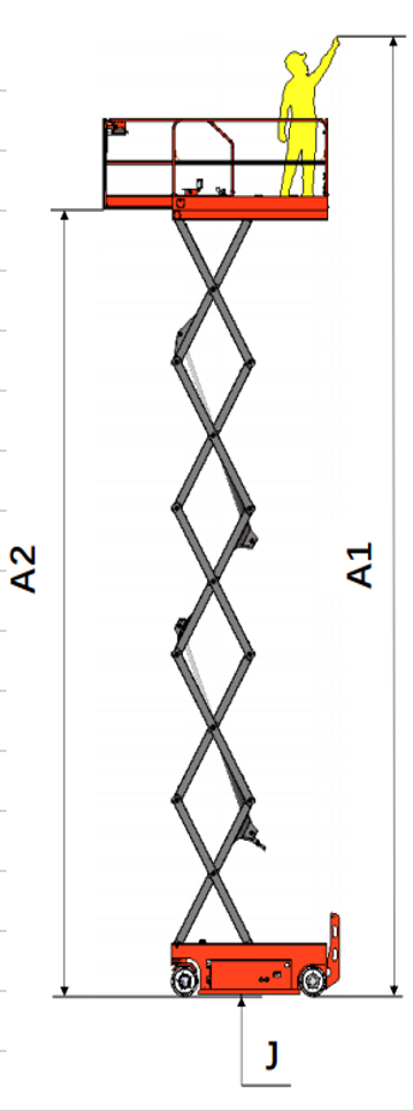

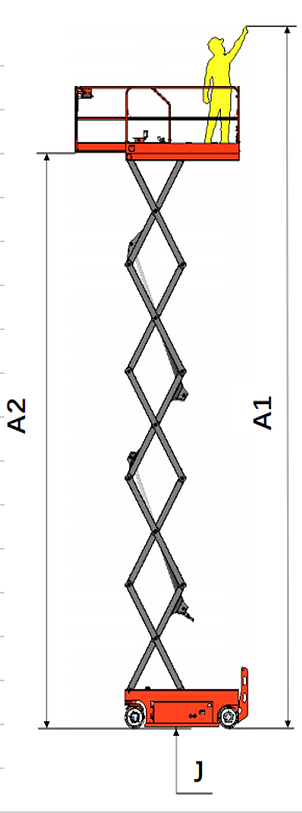

A1 Max working height Inch
TODO
A2 Max platform height Inch
TODO

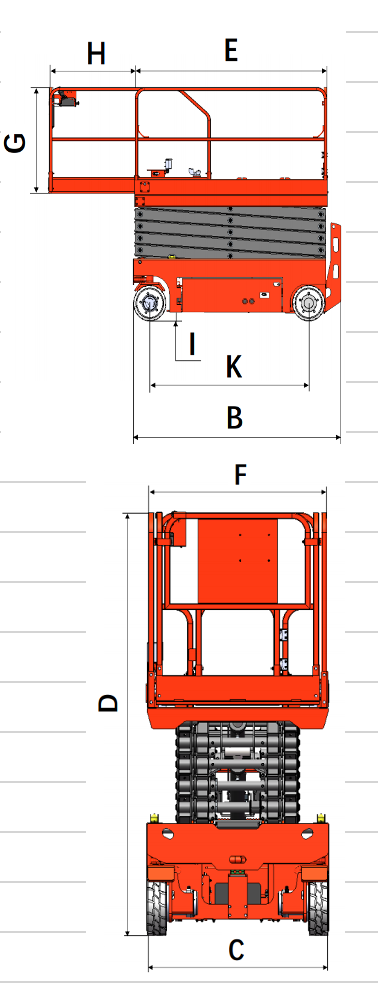

B Length Inch
57.1
C Width Inch
29.9
D Overall height (guardrail not folded) Inch
76.8
Overall height (folding guardrail) Inch
63
Platform size (length EX width FX height G) Inch
50.4*29.1
G Guardrail height Inch
43.3
H Platform extension size Inch
23.6
I Ground clearance (closed state) Inch
2.36
J Ground clearance (lifting state) Inch
0.59
K Wheelbase Inch
40.6
Maximum number of workers (indoor/outdoor)
2 / –
load rating LBS
500
Extended platform load rating LBS
220
Driving speed (folding state) km/h
0~4
Driving speed (lifting condition) km/h
0~0.8
Minimum Turning radius (inside) Inch
0
Minimum turning radius (outside) Inch
61
Rise/fall time s
25/25
Maximum allowable tilting Angle (front/left/right) °
3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s
0/0
Maximum allowable lateral force (indoor/outdoor) N
400/0
Gradeability %
25
control
proportional control
actuator
Dual front wheels
braking
Double front wheels
Tyre specification/type Inch
9*3.1
Lift/drive motor kw
1.2/0.4*2
Battery voltage/capacity V/Ah
12x2/100
Charger input voltage VAC
100-240
Charger output current A
10
control voltage VDC
24
Hydraulic tank capacity L
3
total weight lbs
2046
